Products

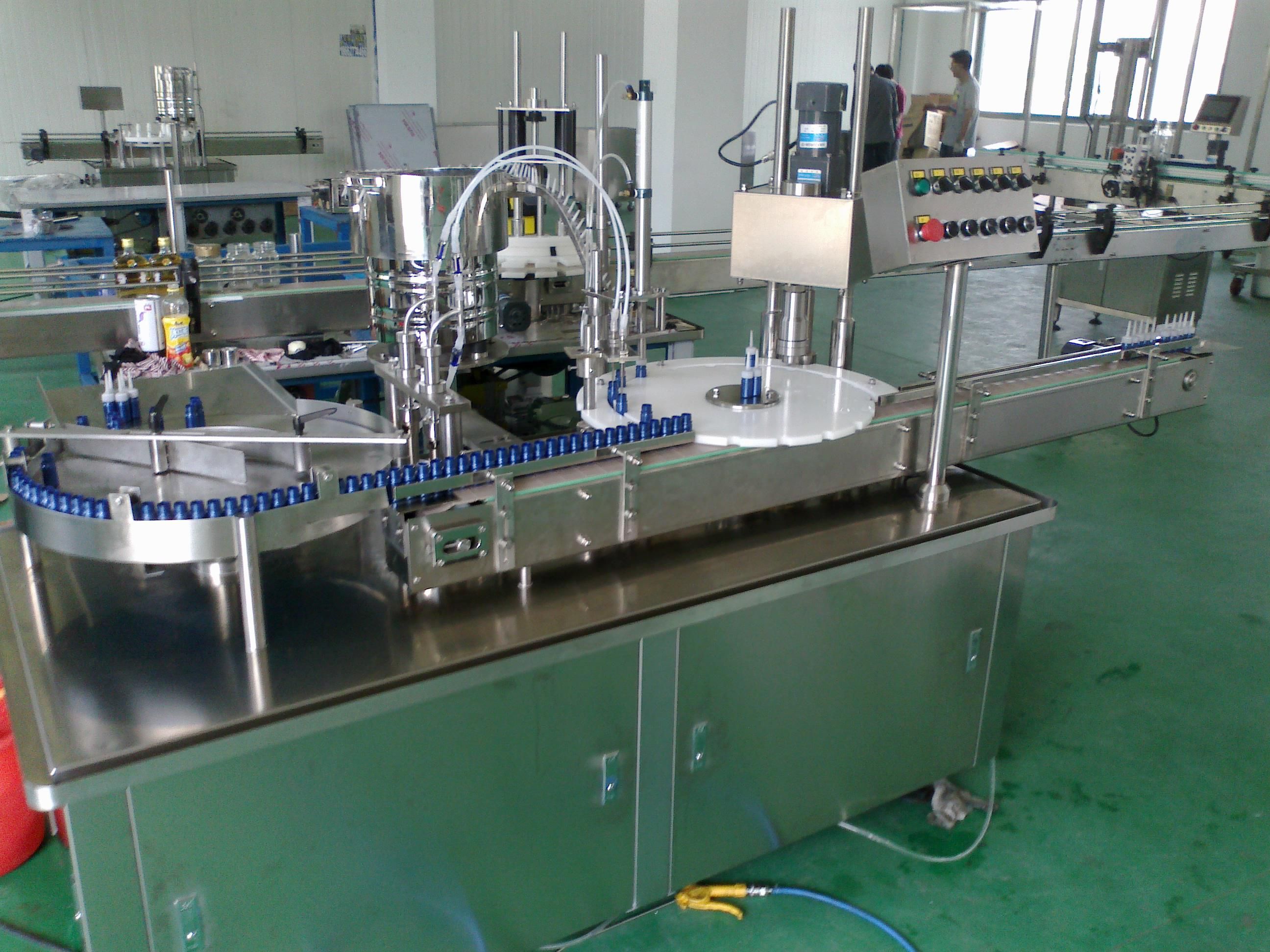

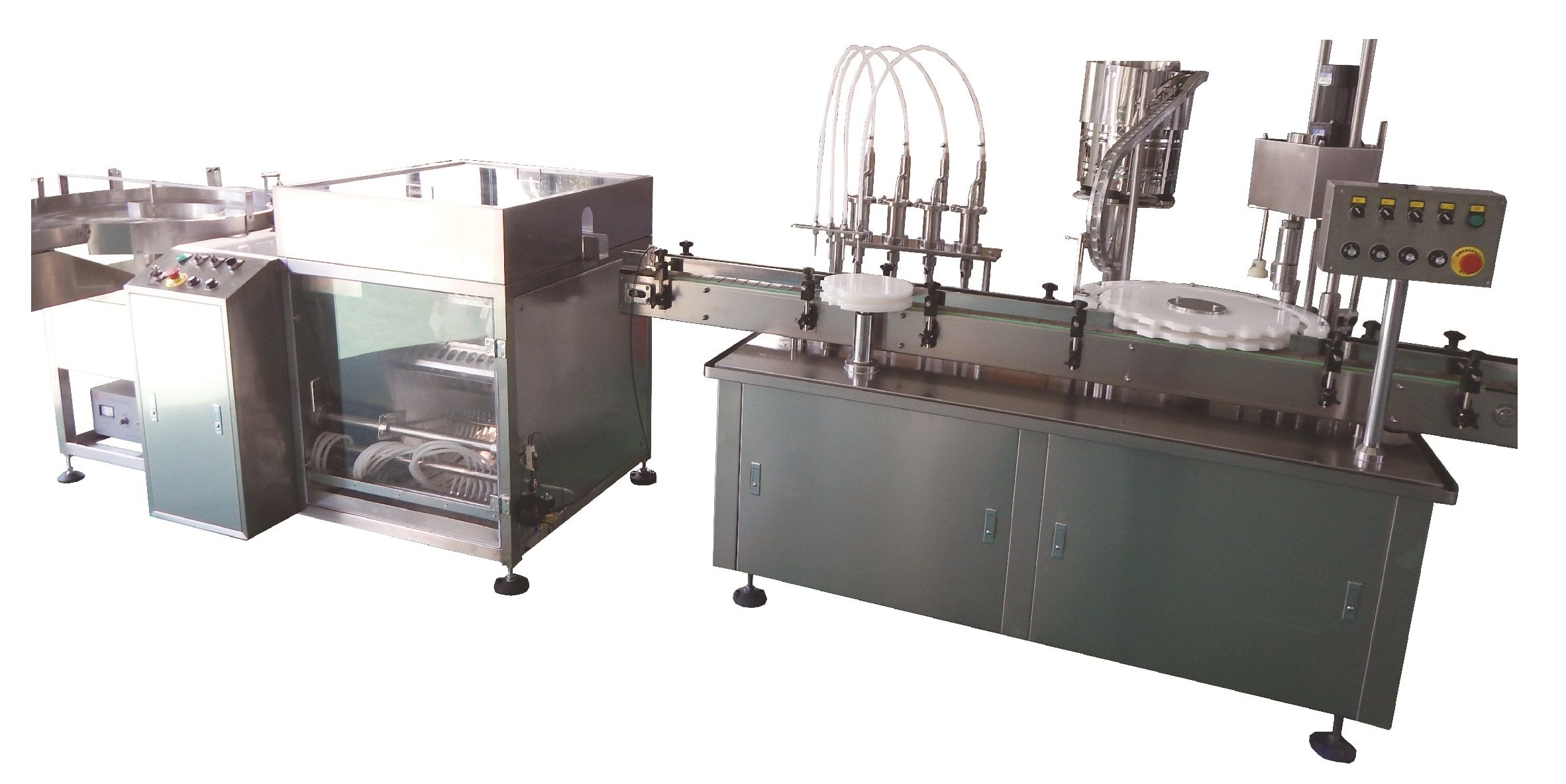

This production filling line which includes bottle turntable,ultrasonic washing machine ,filling plugging and capping machine, can make bottle clean and dry ,blow as well with filling process etc,can connect with labeling machine
Uses:
This production filling line which includes bottle turntable,ultrasonic washing machine ,filling plugging and capping machine,
can make bottle clean and dry ,blow as well with filling process etc,can connect with labeling machine
Characteristic:
Outer materail is 304 stainless steel and the material of filling parts is SS316L stainless steel,it complies with GMP regulation and can be suitable for
several bottle specifications, stable running ,low noice, precise filling ,low bottle breakage ration ,high qualified product ration, low energy consumption .
The whole line an single machine control or interlock control.
Main Technical Parameters
|
Applied Bottle |
20-500ml |
|
Productive Capacity |
20-50pcs/min |
|
Filling Tolerance |
0-2% |
|
Qualified cap putting |
≥99% |
|
Qualified capping |
≥99% |
|
Power supply |
380V,50HZ |
|
Power |
3KW |
|
Net Weight |
750KG |
|
Dimension |
6000(L)×1300(W)×1800(H)mm |
