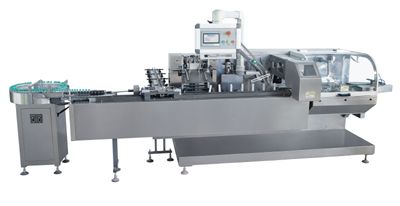

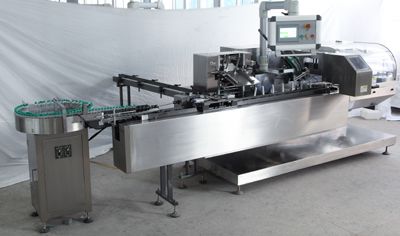

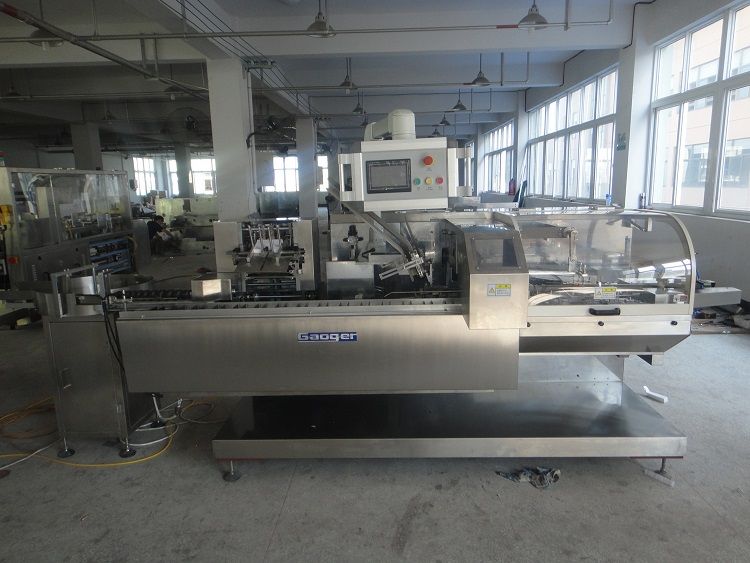

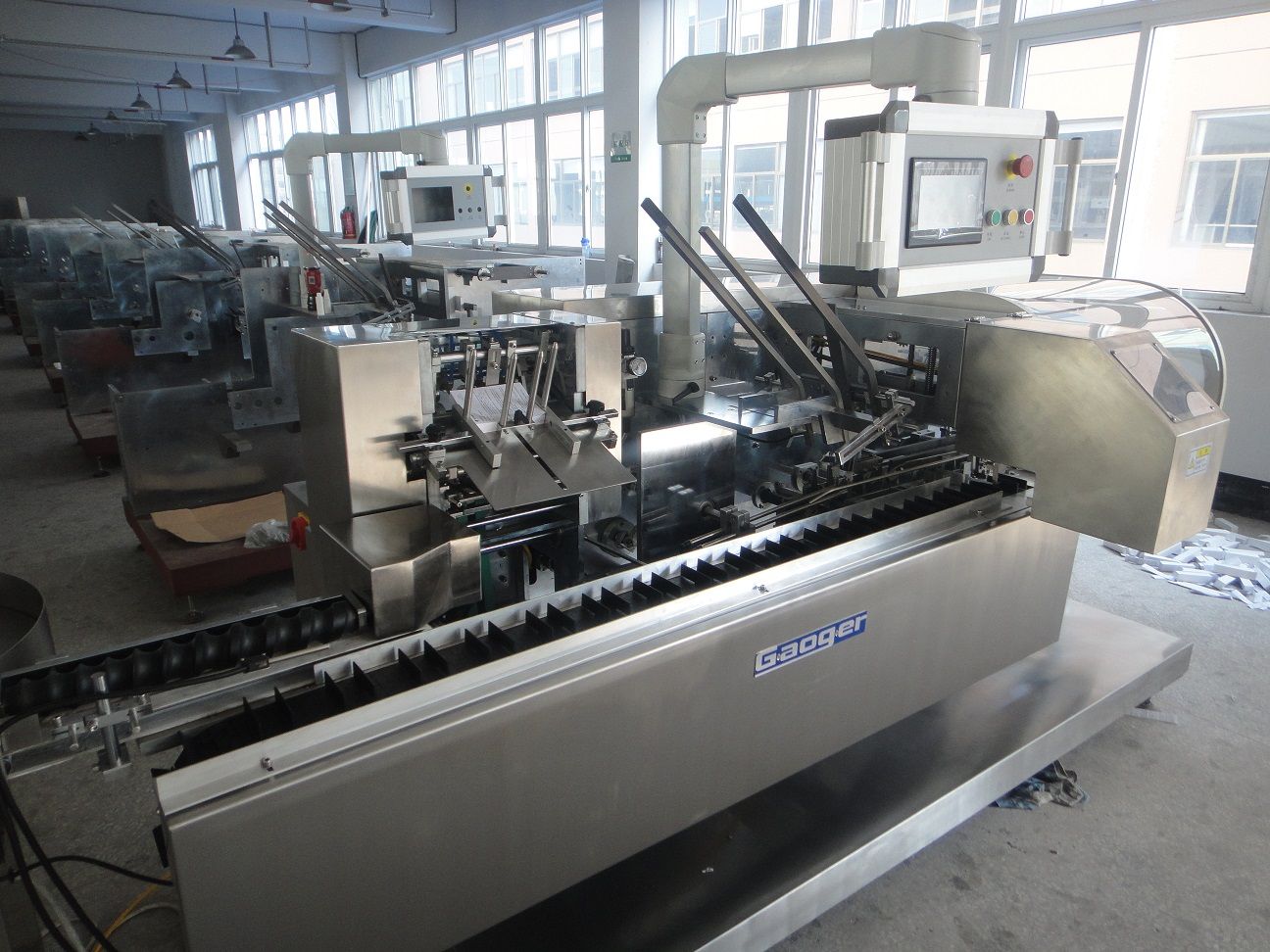

Name : ZHB-100 Automatic Cartoning Machine (for packing bottle,tube)
ZHB-100 multi-functional automatic cartoning machine is widely applied in Bottle,tube,vial and other similar objects cartoning packing.The machine can automatically finish filling packaged objects ,

folding instruction manual(leaflet) ,forming(opening) Box ,inserting packaged objects ,printing.batch No ,sealing ,output functions.
Product Info
Specification
PDF
Video

Applicants:

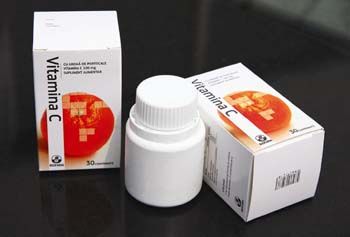

ZHB-100 multi-functional automatic cartoning machine is widely applied in Bottle,tube,vial and other similar objects cartoning packing.The machine can automatically finish filling packaged objects ,

 folding instruction manual(leaflet) ,forming(opening) Box ,inserting packaged objects ,printing.batch No ,sealing ,output functions.

Feature:

1.Machine using mechanical pusher, each agencies work coordination , stable and reliable.

2.Adopts frequency speed adjust, PLC automatic control, touch screen operation, operation easy and running stable.

3.Lack of instructions, lack of blister sheets  ,machine automatically detect and reject .
4. Automatic servo feeding device
5. Steel character embossing.

Optional

The machine can be optional ink jet printer, glue machine, bar code reader, etc..

Technical Data:



 Cartooning speed

 100 Cartons/min

 Size of bottle

 Min: diameter 25 height: 50 (mm)

 Max: diameter 90 height: 150 (mm)

 Quality of carton

 250~350g/m2

 Motor power

 1.5 kw

 Power supply

 Three Phases Four Wires 380V 50Hz (220V 60 Hz)

 Air pressure and flow

 0.5 Mpa >0.6m3/min

 Air consumption

 ≥ 0.9 m3/h

 Noise standard

 <85 dB

 Size (L*W*H)

 2800×1350×2000 (mm)

 Weight

 1500 Kg
