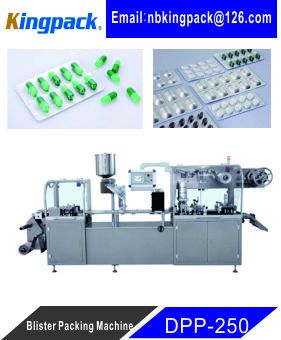

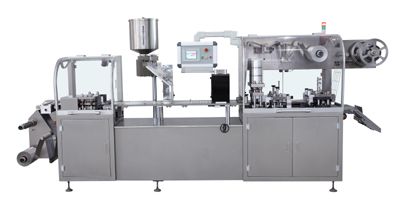

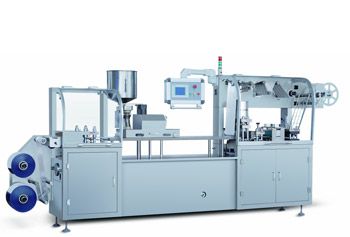

Name : DPP-250 Blister Packing Machine
DPP-250 Blister Packing Machine can be widely used as tablet packing ,capsule packing,and other solid object packing such as candy, etc.
Product Info
Specification
PDF
Video

Applications:

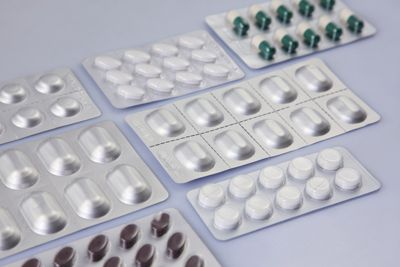

Our DPP-250 Blister Packing Machine can be widely used as tablet packing ,capsule packing,and other solid object packing such as candy, etc.

Feature:

1.DPP-250 Blister Packing Machine follows ergonomic design principles and is in accordance to the GMP and CGMP structure standards.

2.If there is an operation problem, the machine will automatically stop and display what the problem is .

3.The main motors are equipped with a variable frequency speed controller.

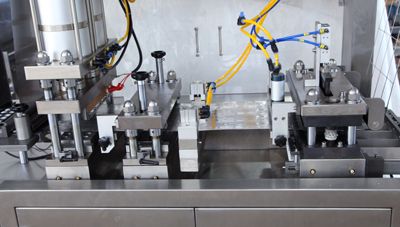

4.Modular-type work stations make the adjustment of work station clear and easy.

5.A safety enclosure is provided to protect equipment and operators.

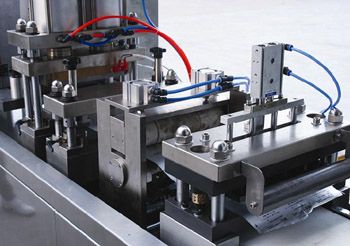

6.Independent moulds can be assembled and disassembled easily.

Options;

1. Detecting system

2. Photoelectric registration device

3. Chiller cooling system


Machine Tech Data:

Output :

Maximum : Alu-PVC 50times/min

Maximum : Alu-Alu   30times/min

Maximum forming area;

245 x 130 x 15mm

Adjustable range of stroke:

30 - 130mm

Packing Materials

PVC:260x0.25(0.15-0.5)mm PTP:260x0.02mm

Air compressor:

≥0.22m3/min (self -prepared)

Power:

5.7Kw, AC 380V (or 220V) (Choose by client)

Rated frequency:

50Hz/60Hz

Air pressure:

0.5-0.7Mpa

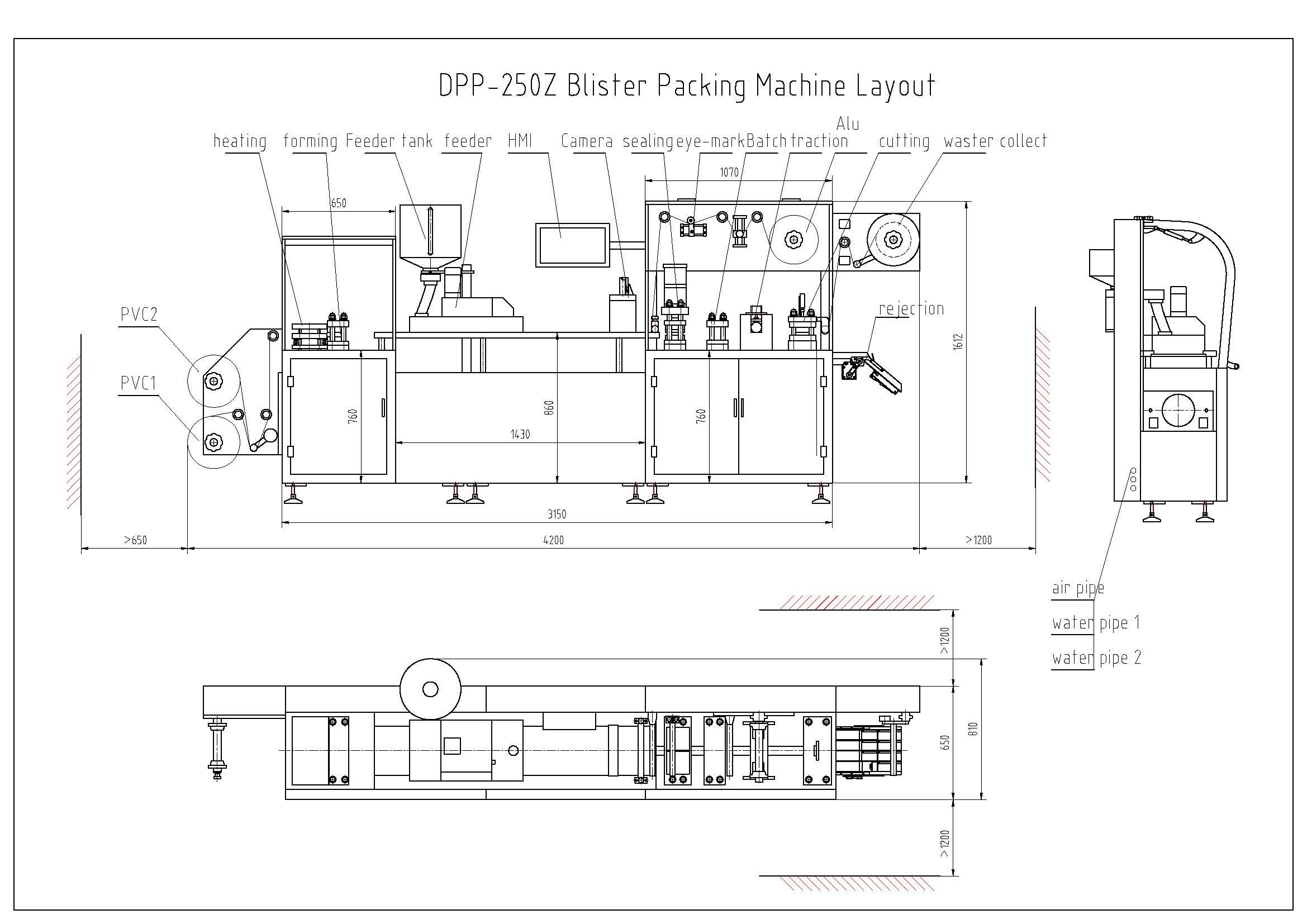

Dimensions:

4200mm×650mm×1700mm(LxWxH)

Weight:

2000kg
