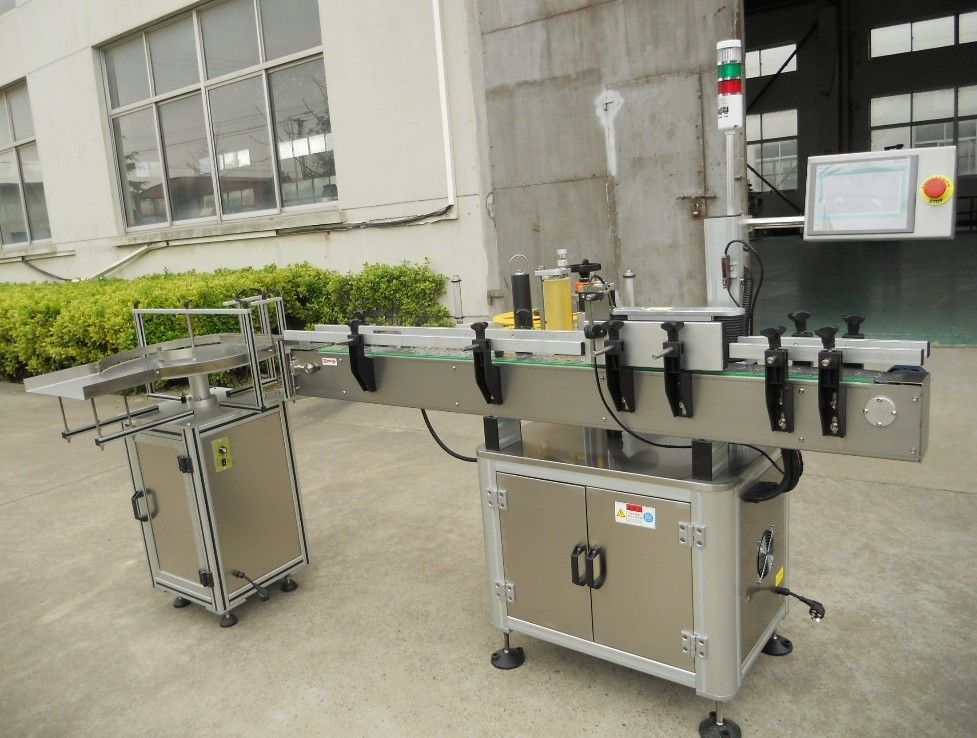

Name : SKP-120 Automatic labeling machine
This machine is suitable for labeling all kinds of round bottle, with double sides or one side self adhesive sticker.
Product Info
Specification
PDF
Video

The scope of application:

1. Suitable for round bottles using the fixed point and position of the label.

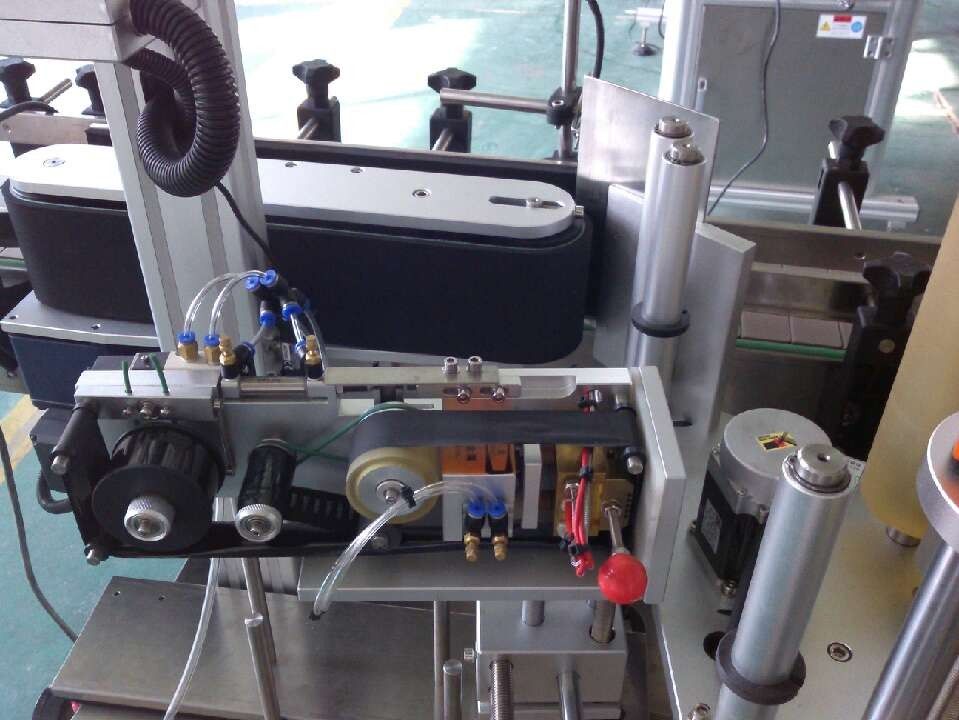

2. Use rubber wheel differential separation mechanism,can be stepless speed regulation,separated into any spacing,change without changing the product specifications.

3.Using cylinder orgnaization,the movement speed,applicability of different products.
Rubber wheel rolling stick,service life is long,when positioning labeling labeling label position precision is high.
4.Labeling of high precision,labeling accuracy +/-0.5mm.

Technical parameters:

Model

SKP-120

Max. capacity

Max.120 Bottles/Min

Size of Bottle

Diameter:30- 80mm

Size of Label

length 22-350mm

Voltage

220V , Three Phase or 380V

Power

1.5KW

Laveling Accuracy

±0.5mm

Overall Dimension

2400 (L)*1300(W)*1390(H)mm

Weight

300kg (with conveyor)
