Suitable for Strip, Ice cream, sachet and other similar big object cartoning machine .
Applicants:

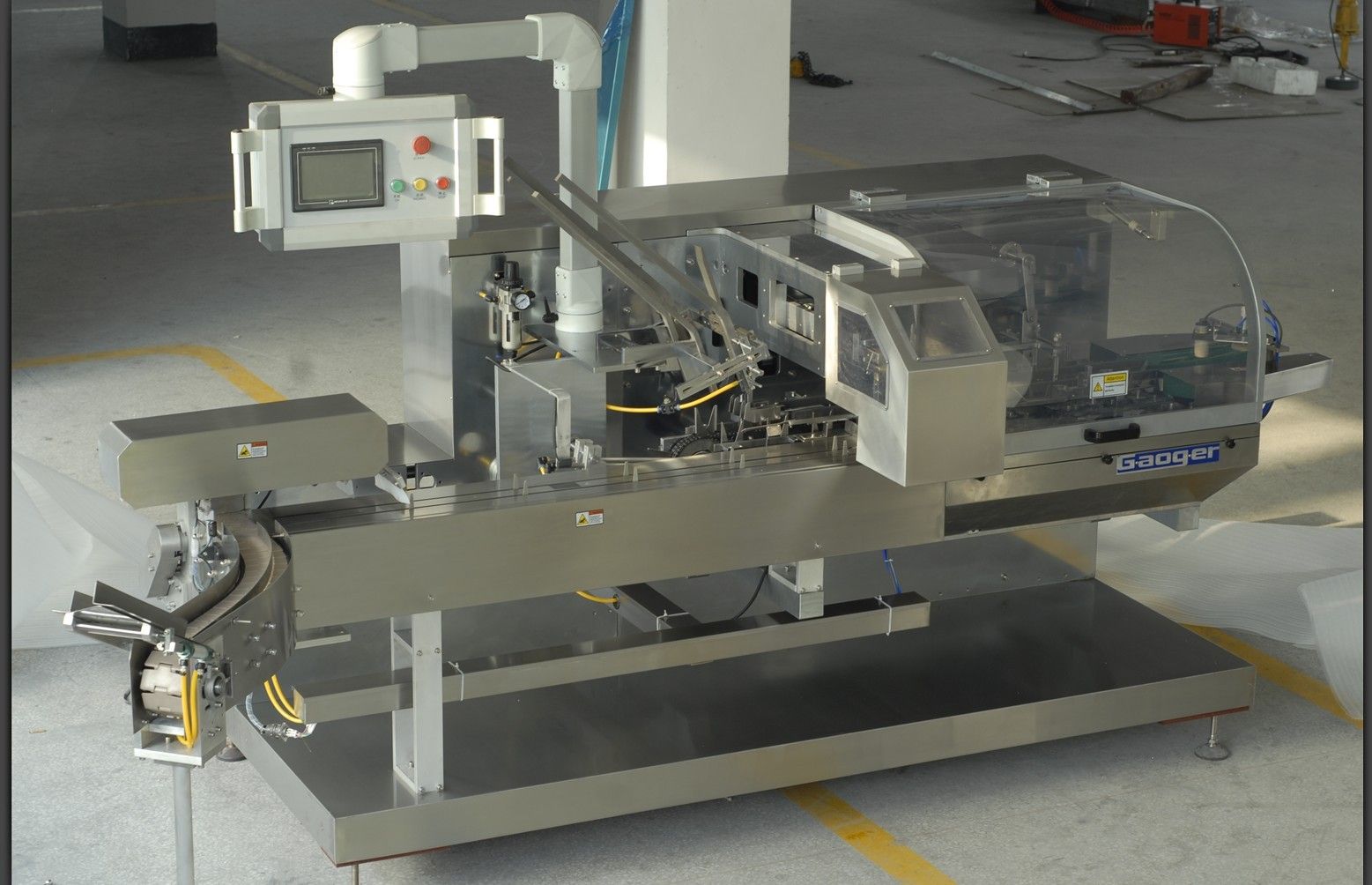

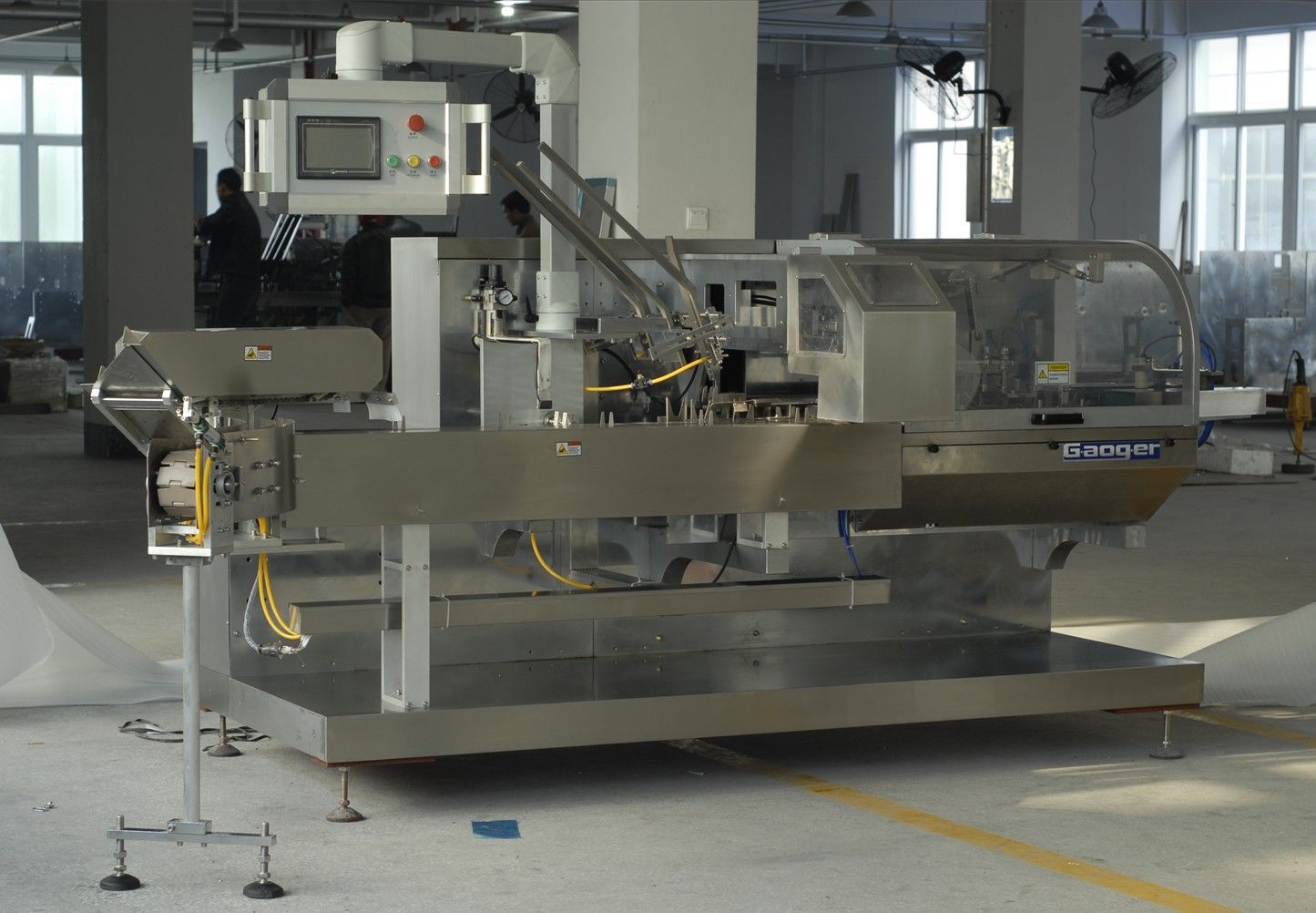

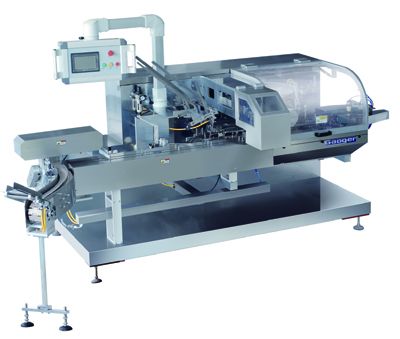

ZHW-120 multi-functional automatic cartoning machine is widely applied in Strip,Sachet,Ice cream and other similar objects cartoning packing.The machine can automatically finish filling packaged objects ,
folding instruction manual(leaflet) ,forming(opening) Box ,inserting packaged objects ,printing.batch No ,sealing ,output functions.
Feature:
1.Machine using mechanical pusher, each agencies work coordination , stable and reliable.
2.Adopts frequency speed adjust, PLC automatic control, touch screen operation, operation easy and running stable.
3.Lack of instructions, lack of blister sheets ,machine automatically detect and reject .
4. Automatic servo feeding device
5. Steel character embossing.
Optional
The machine can be optional ink jet printer, glue machine, bar code reader, etc..
Technical Data:
|
Cartooning speed |
100 cartons/min |
|
Size of ice-cream |
>40×35×35mm < 170×87×50mm |
|
Quality of carton |
250~350g/m2 |
|
Motor power |
1.5 kw |
|
Power supply |
Three Phases Four Wires 380V 50Hz (220V 60 Hz) |
|
Air pressure and flow |
0.5 Mpa >0.6m3/min |
|
Air consumption |
≥ 0.9m3/h |
|
Noise standard |
<85 dB |
|
Size (L*W*H) |
2800×1350×2000 (mm) |
|
Weight |
1800 Kg |
