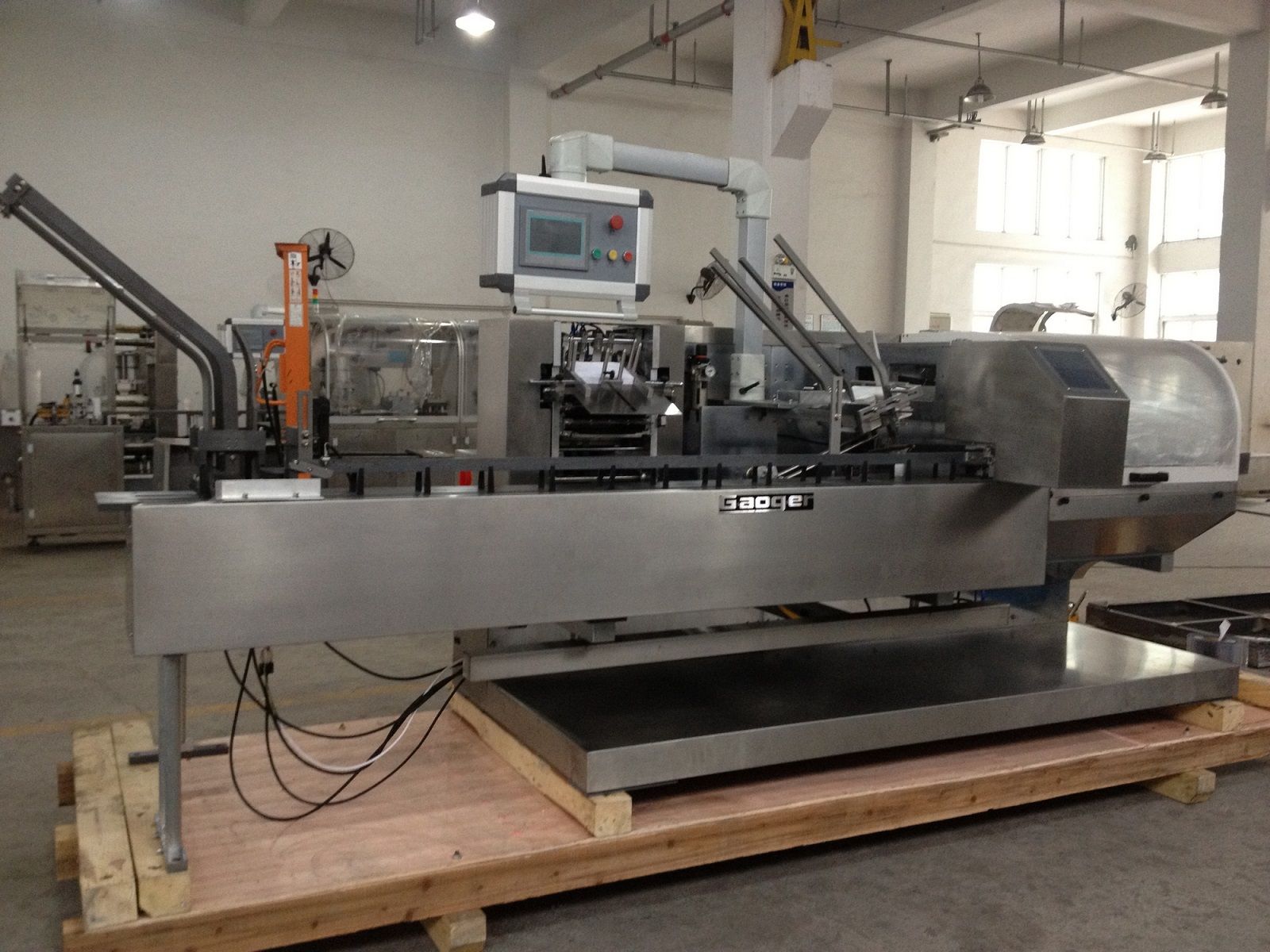

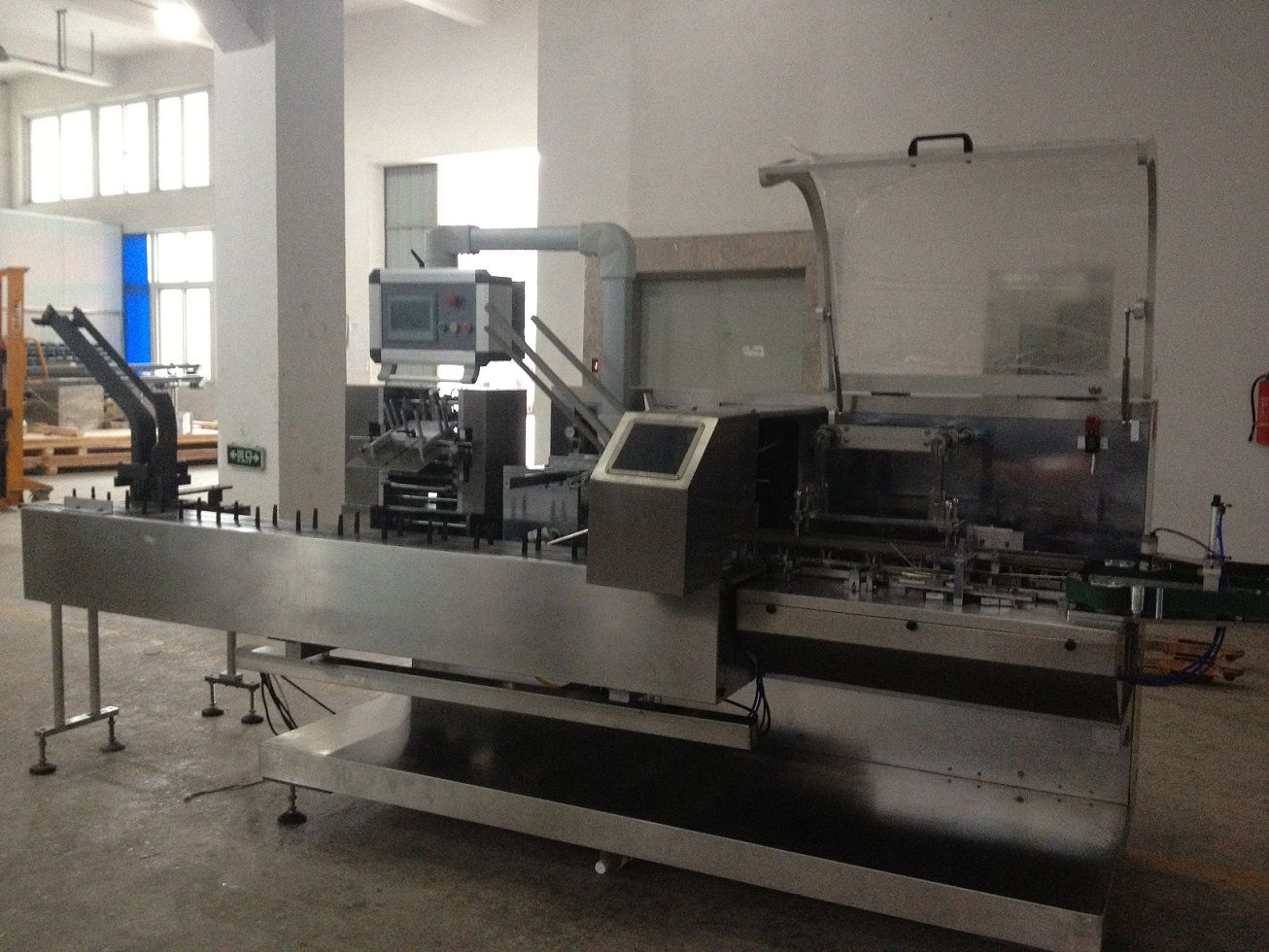

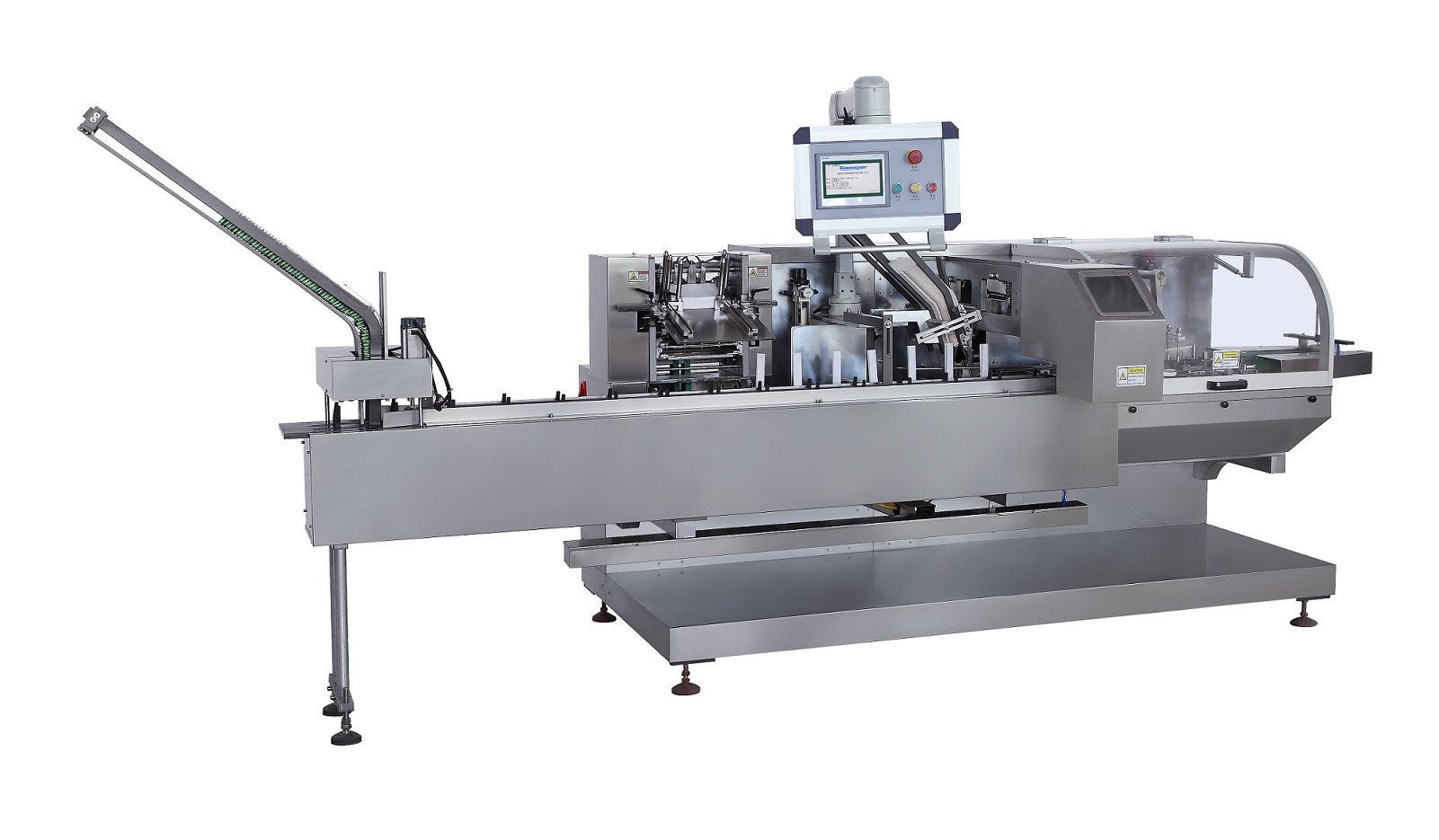

ZHW-100 Horizontal&Intermittent Cartoning Machine is widely applied in Pharmaceutical blister sheets, poker and other similar objects cartoning packing.
The machine can automatically finish filling packed objects,folding instruction manual(leaflet),forming(opening)carton, inserting packed objects,printing batch No.
Sealing ,output functions.
Applicants:
ZHW-100 multi-functional automatic cartoning machine is widely applied in pharmaceutical (Alu-PVC,/Alu-Alu/Alu-PVC-Alu)blister sheets , poker and other similar objects cartoning packing.The machine can automatically finish filling packaged objects ,

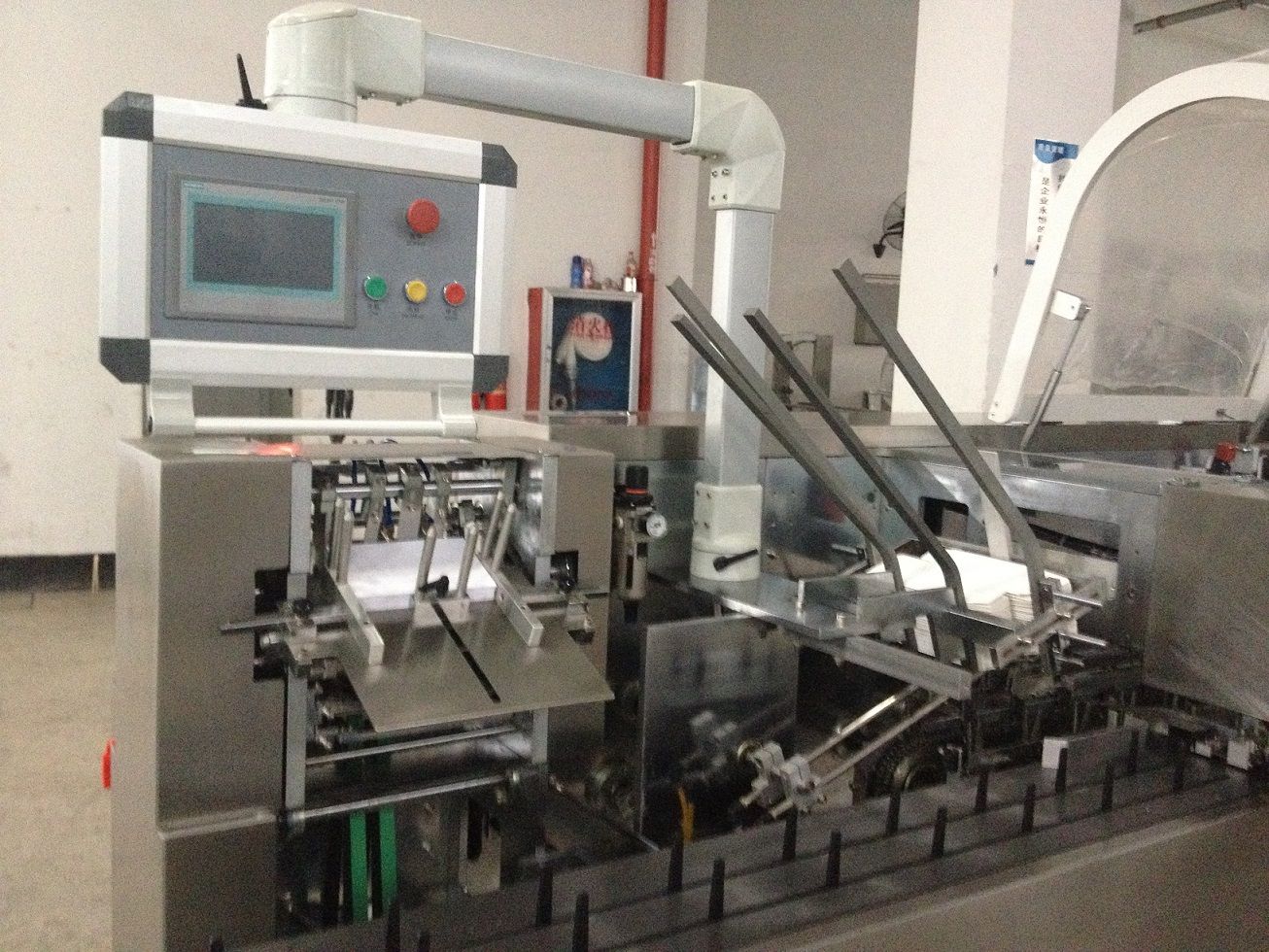

folding instruction manual(leaflet) , forming(opening) Box , inserting packaged objects , printing.batch No ,sealing , output functions.
Feature:
- 1.Machine using mechanical pusher, each agencies work coordination , stable and reliable.

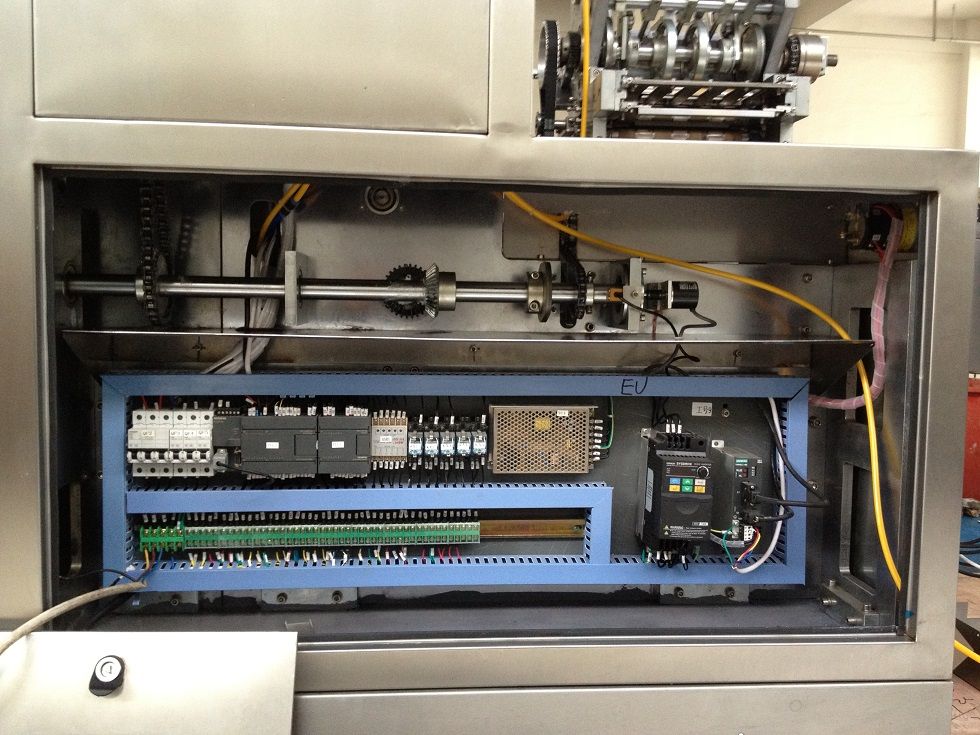

- 2.Adopts frequency speed adjust, PLC automatic control, touch screen operation, operation easy and running stable.
- 3.Lack of instructions, lack of blister sheets ,machine automatically detect and reject .
- 4. Automatic servo feeding device
- 5. Steel character embossing.
Optional
The machine can be optional ink jet printer, glue machine, bar code reader, etc..
Technical Data:
|
Cartooning speed |
Max 100 Cartons/min |
|
Size of blister |
>40×35×35mm < 150×87×50mm |
|
Quality of carton |
250~350g/m2 |
|
Motor power |
1.5 kw |
|
Power supply |
Three Phases Four Wires 380V 50Hz (220V 60 Hz) |
|
Air pressure and flow |
0.5 Mpa >0.6m3/min |
|
Air consumption |
≥ 0.9m3/h |
|
Noise standard |
<85 dB |
|
Size (L×W×H) |
4100×1350×1650 (mm) |
|
Weight |
1800Kg |
