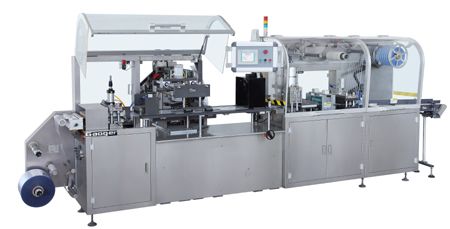

Name : DHP-250P/350P Blister Packing Machine

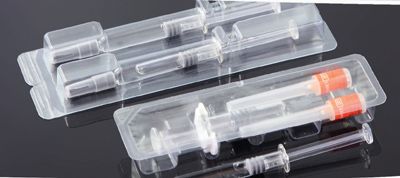

The machine suitable for ampoule, vials and pre-filled syringe etc .blister packing , adopts automatic feeding system.
Product Info
Specification
PDF
Video

Applications:

The machine suitable for ampoule, vials and pre-filled syringe etc .blister packing , adopts automatic feeding system.

Machine feeder can be connect with labeling machine ,and output can use with cartoning machine,

thus formed a complete automatic packaging production line.


Feature:

1.Machine with GMP standard,adopts PLC control system.

2.Uses the servo motor -driven and the main motor is adopts frequency control

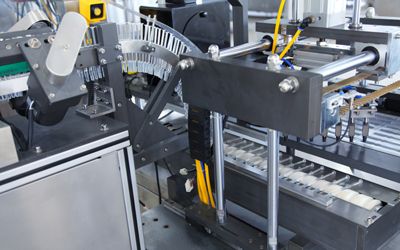

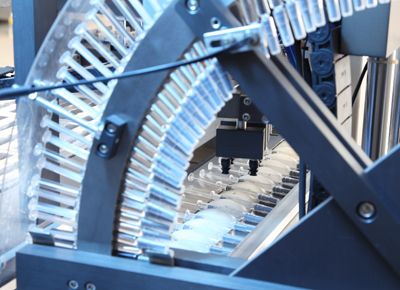

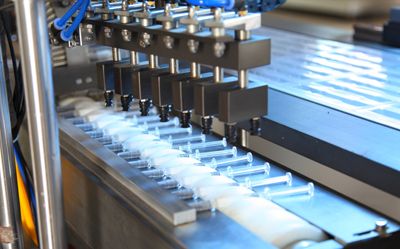

3.Specially automatic servo drive feeder for ampoule,vial,pre-filled

4.Equipped blister forming detection ,feeding detect rejection

5.Uses the safety cover protection devices to ensure operator safety.

Main Technical data:



Maximum blanking frequency

25times/minute

Maximum Working capacity

DHP-250P:100 blisters/min

DHP-350P:150 blisters/min

Stroke

≤130mm(according to customer's request)

Maximum forming area

DHP-250P:245×130x35mm

DHP-350P:345x130x35mm

Packaging materials

DHP-250P: PVC:260×0.25(0.15-0.5)mm

                      PTP:260×0.02mm

DHP-350P: PVC:350×0.25(0.15-0.5)mm

                      PTP:3500×0.02mm

Power supply

380V or 220V

Total power

DHP-250P: 6Kw

DHP-350P: 7Kw

Air flow

≥0.38m3/min

Dimension of machine(L×W×H)

4500×850×1700mm

Weight

DHP-250P: 2500kg

DHP-350P: 3000kg
