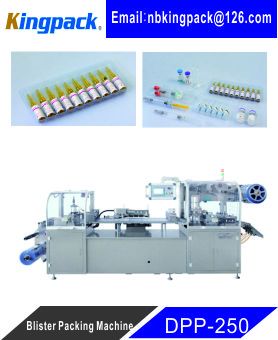

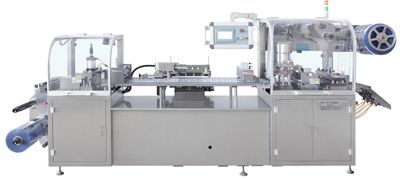

DPP-250P/350P Blister packing machine are widely used for syringe ,vials ,injection ,ampoule blister packing.
Applications:

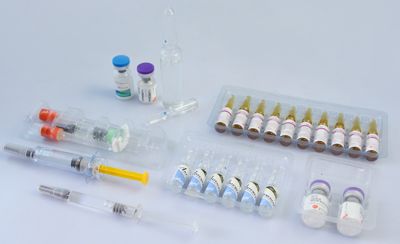

DPP-250P/350P Blister packing machine are widely used for syringe ,
vials ,injection ,ampoule blister packing.
Features:
1.DPP-250P/350P Blister Packing Machine follows the GMP structure standard,
and adopts PLC touch screen interface control system.
2.All components that contact with pharmaceutical products are made of high
anti-corrosive SUS 316 stainless steel
3.The man motors are equipped with a variable frequency speed controller.
4.Our packing machine are equipped with servo filling system and blister forming detection device.
Options:
Ø Servo drive
Ø Safety enclosure
Ø Chiller cooling system
Main Technical data:
|
Maximum blanking frequency |
25 times/minute |
|
Maximum Working capacity |
DPP-250P:100 blisters/min DPP-350P:150 blisters/min |
|
Stroke |
≤130mm(according to customer's request) |
|
Maximum forming area |
DPP-250P:245×130x35mm DPP-350P:345x130x35mm |
|
Packaging materials |
DPP-250P: PVC:260×0.25(0.15-0.5)mm PTP:260×0.02mm DPP-350P: PVC:350×0.25(0.15-0.5)mm PTP:3500×0.02mm |
|
Power supply |
380V or 220V |
|
Total power |
DPP-250P: 6Kw DPP-350P: 7Kw |
|
Air flow |
≥0.38m3/min |
|
Dimension of machine(L×W×H) |
4500×850×1700mm |
|
Weight |
DPP-250P: 2500kg DPP-350P: 3000kg |
