Products
Raw materials for production： PP、PS、HIPS、PE

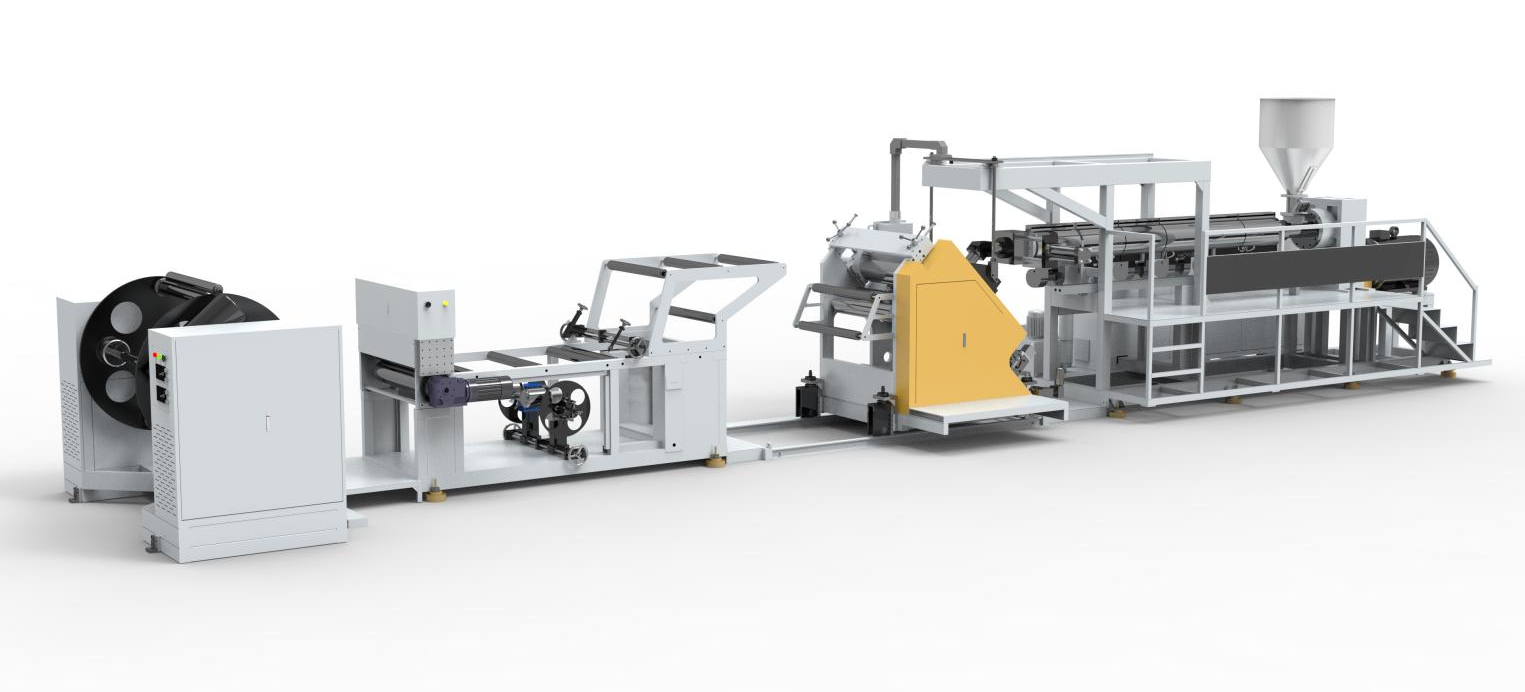

Equipment List
|
№ |
Name |
Quantity |
|
1． |

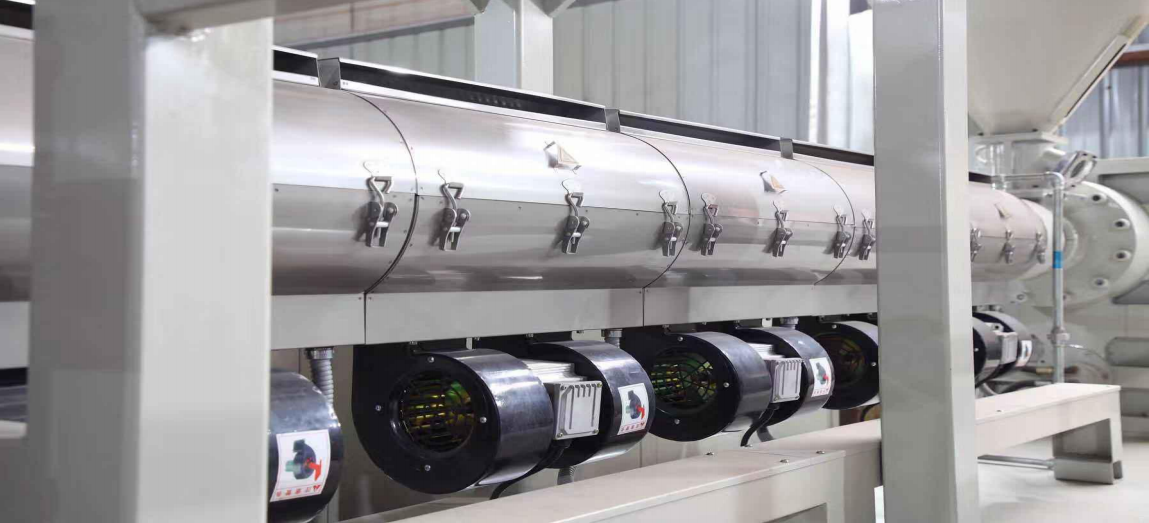

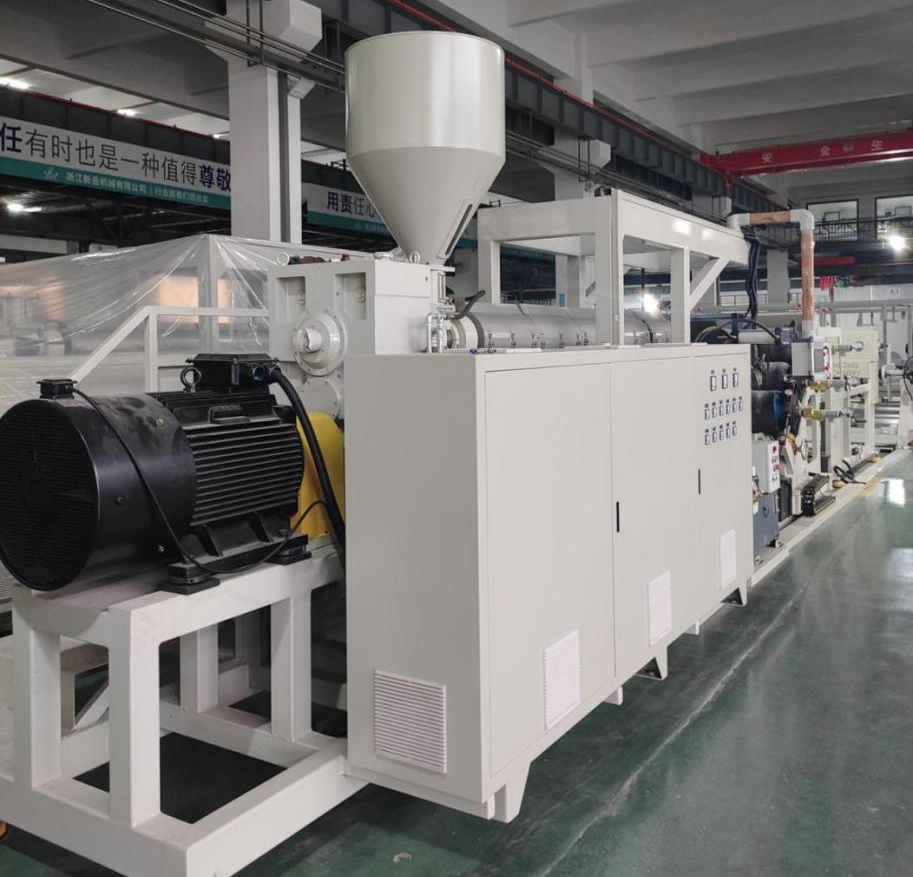

110 Single screw extruder |
1SET |
|
2． |
Screen changer |
1SET |
|
3. |
Gear pump（Haiyan，ZHENGCHENGDA） |
1SET （OPTION） |
|
4． |
T-die （Haiyan，ZHENGCHENGDA） |
1SET |
|
5． |

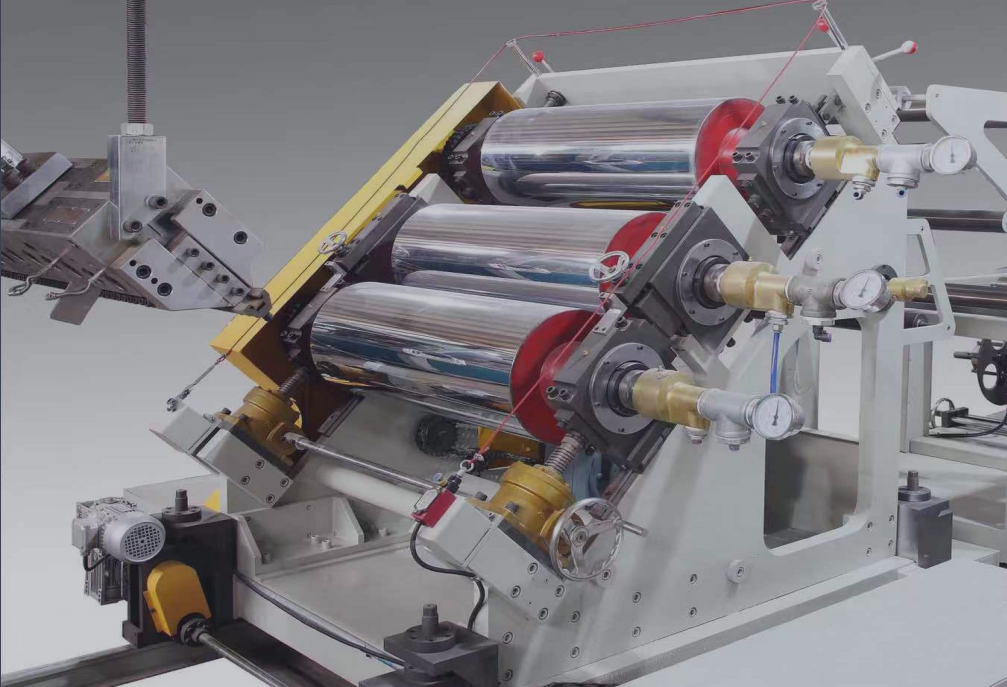

Three-roller calender |
1SET |
|
6． |

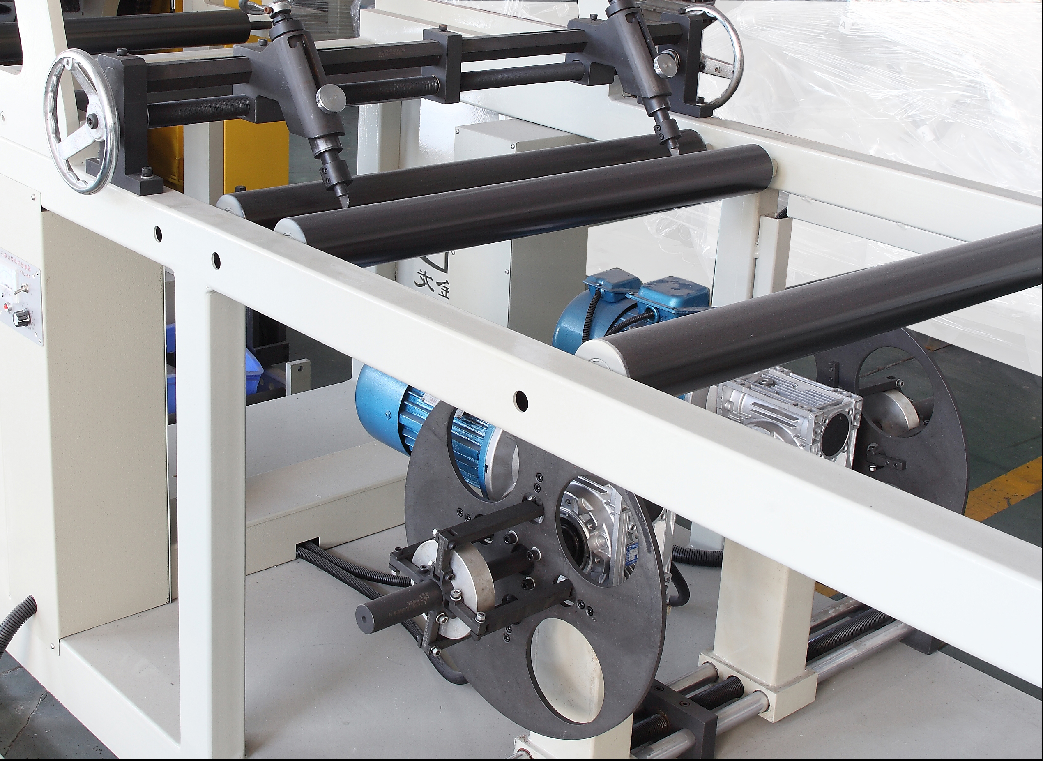

Cooling bracket and edge trimming unit |
1SET |
|
7． |
Haul off unit |
1SET |
|
8. |
Plastic anti-static unit |
1SET (OPTION） |
|
9． |
Two position Winder |
1SET |
|
10． |
Electric cabinet control system |
1SET |
|
1. Conditions ①Power |
380V/ 50Hz 3P+N+E |
|
②Cooling water |
Temperature below 30℃, pressure 2-4kg/cm2G, water flow 40m3/h, water consumption 1.5m3/h |
|
③Installation environment |
Indoor (temperature 0℃ - 40℃, relative humidity 20% - 80%) |
|
2. Raw materials for production |
PP、PS、HIPS、PE |
|
3. T-Die width |
900mm |
|
4. T-Die Brand |
Haiyan，ZHENGCHENGDA |
|
5. Product specification |
sheet width ：800mm sheet thickness：0.3-1.5mm |
|
6. Screw diameter |
110mm |
|

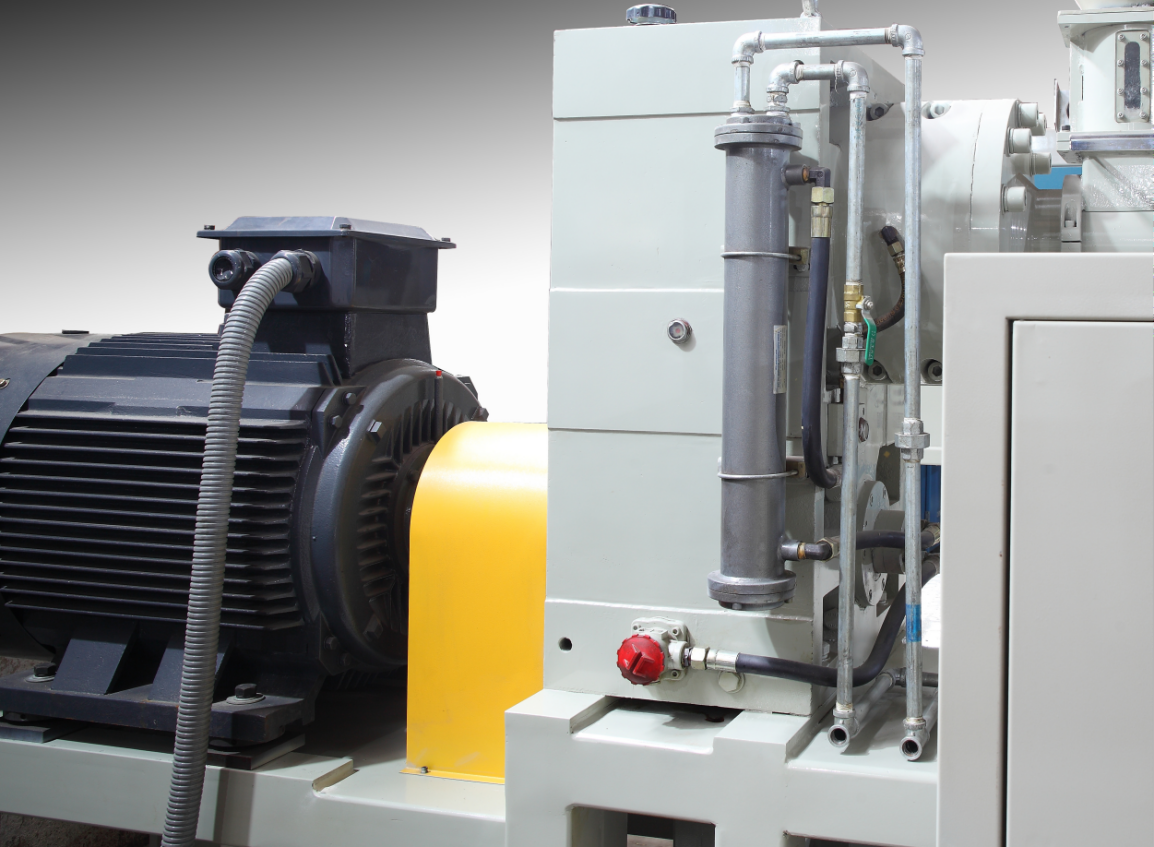

7. Main Motor |
ZHONGLONG 45KW |
|
8. Extrusion output |
200-250Kg/h |
|
9. Sheet structure |
Monolayer |
|
10. Weight |
11T |
|
11. Overall power |
120KW |
|
12. Dimension |
13x2.5x3m |
