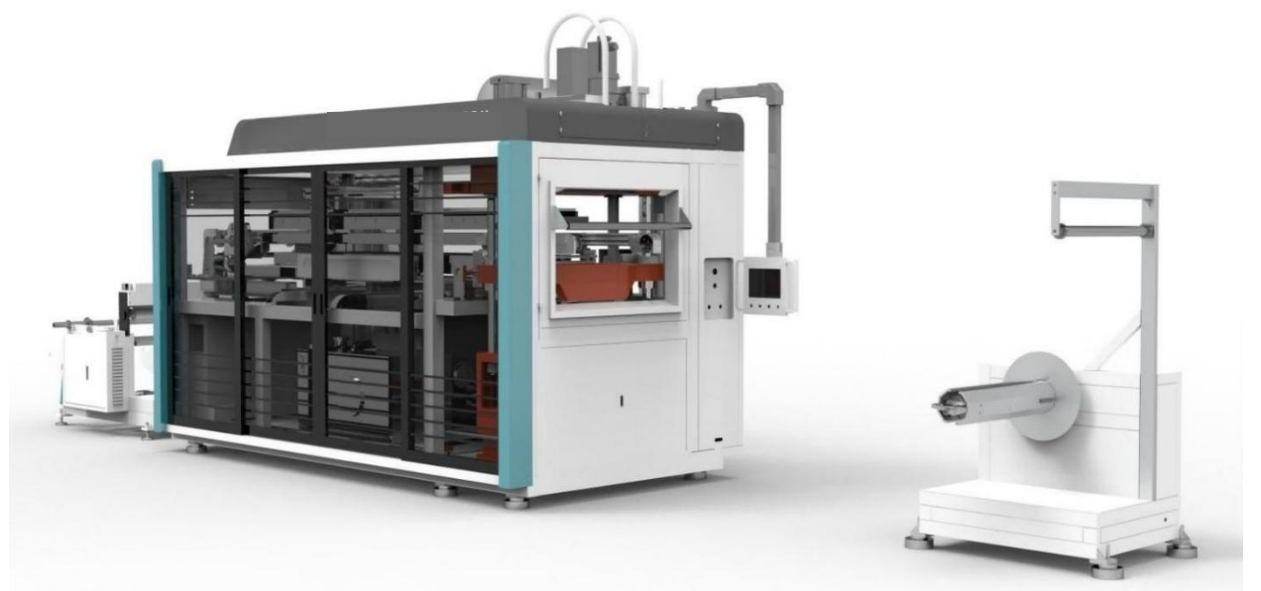

Automatic Plastic Lid Making Machine
Sheet material：PP/PS/PVC/PET/HIPS/PLA
Usage：Milk cup, ice cream cup, disposable drinking cup, instant noodle bowl, fast food box, food box, flower pot and hardware packaging, etc
Driving mode：servo motor + reducer drive control
l General
|
Power Supply |
380v/50Hz Three-phase four-wire |
|
Sheet material |
PP/PS/PVC/PET/HIPS/PLA |
|
Usage |
Milk cup, ice cream cup, disposable drinking cup, instant noodle bowl, fast food box, food box, flower pot and hardware packaging, etc |
|
Driving mode |
15KW DELTA servo motor + reducer drive control |
|
Feeding method |
Driven by 3KW DELTA servo motor |
|
Stretching method |
Servo stretching 5.5KW DELTA servo |
|
Max. forming area |
750x420mm |
|
Max. forming depth |
≤150mm |
|
Thickness Of Plastic Sheet |
0.2-2mm |
|
Max.forming speed |
35cycle/min |
|
Dimension |
L4350*W2380*H3000mm |
|
Air Consumption |
0.6-0.8mpa, 2-2.5m³/min |
|
Electrical consumption |
55KW/Hr |
|
Overall Power |
≤130KW |
|
Weight |
5T |
|
Machine frame |
Square steel |
Auxiliary Equipment（Thermoforming Machine）：
|
Name |
Quantity |
|

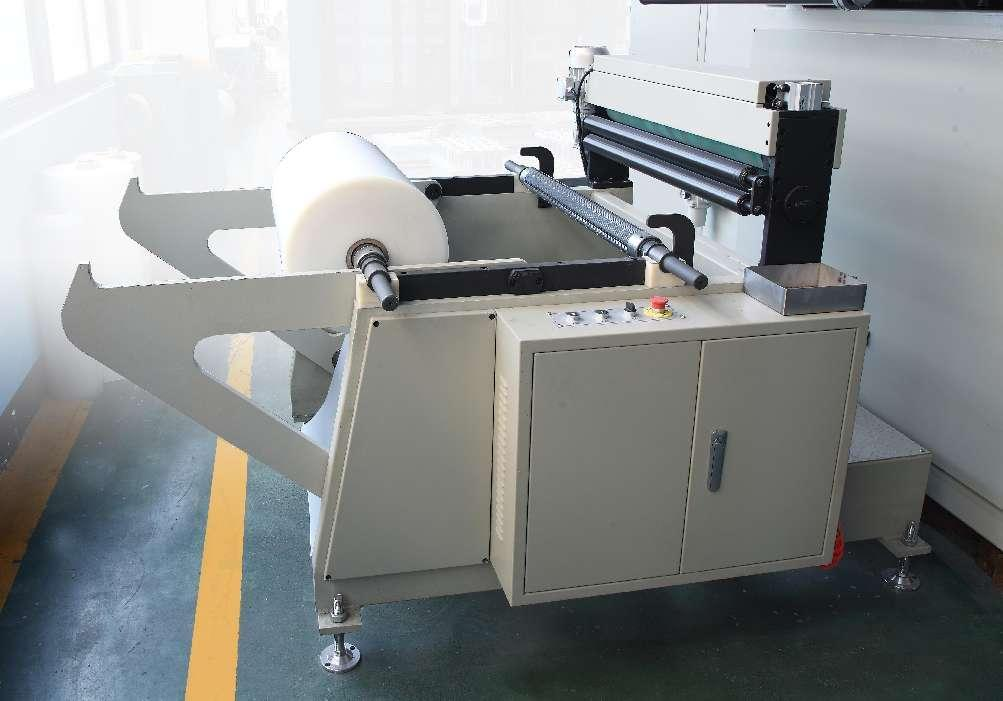

1.Rewinder |
1 unit |
|

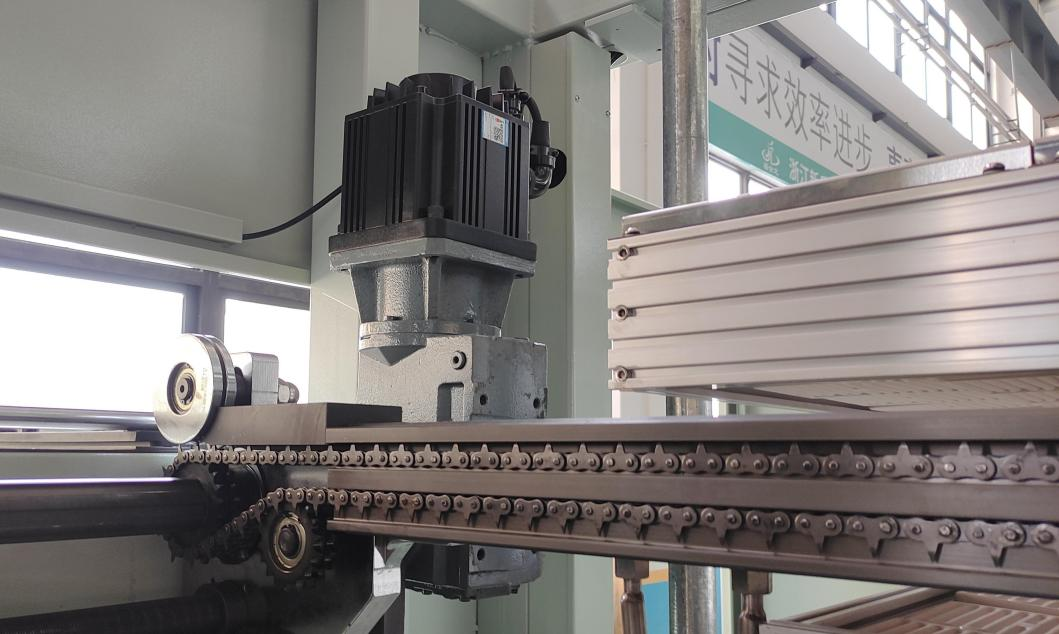

2.Chain & rails |
1 unit |
|
3.Heaters |
1 unit |
|
4.Servo system |
1 unit |
|

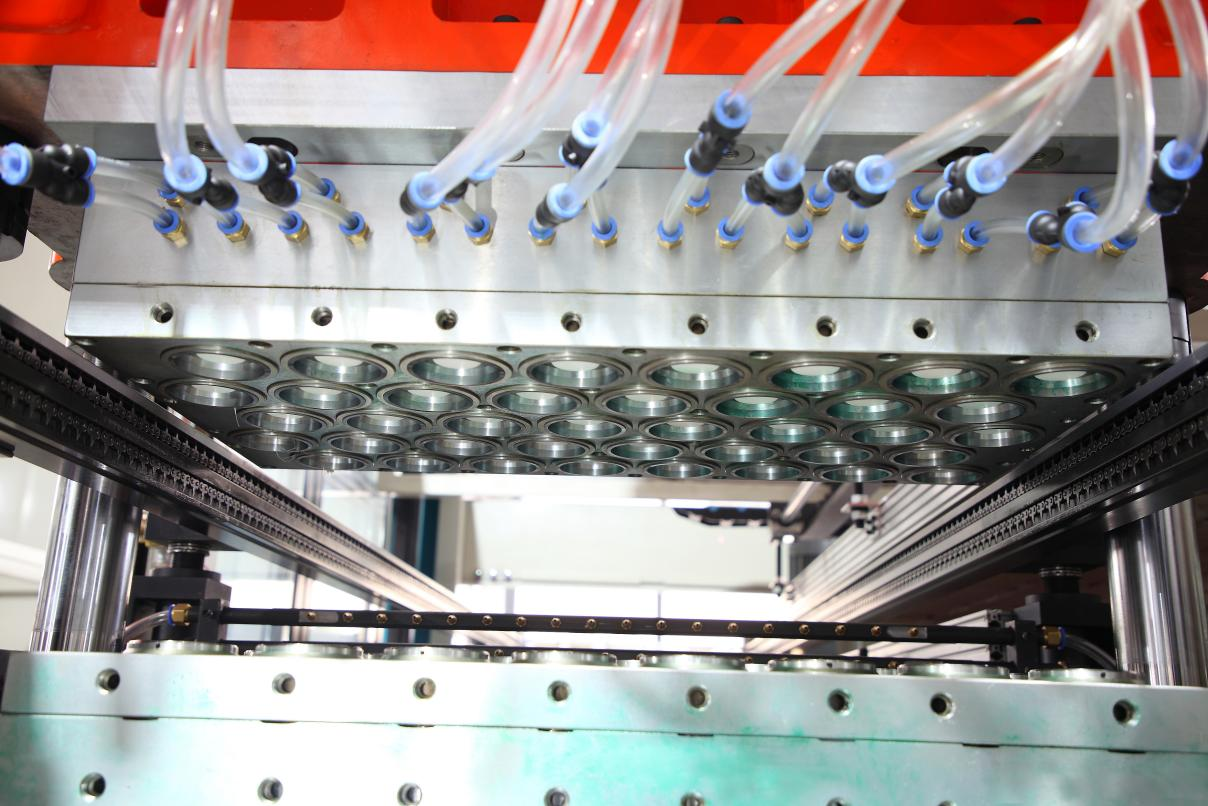

5.Forming station |
1 unit |
|
6.Air system |
1 unit |
|
7.Winder |
1 unit |
|

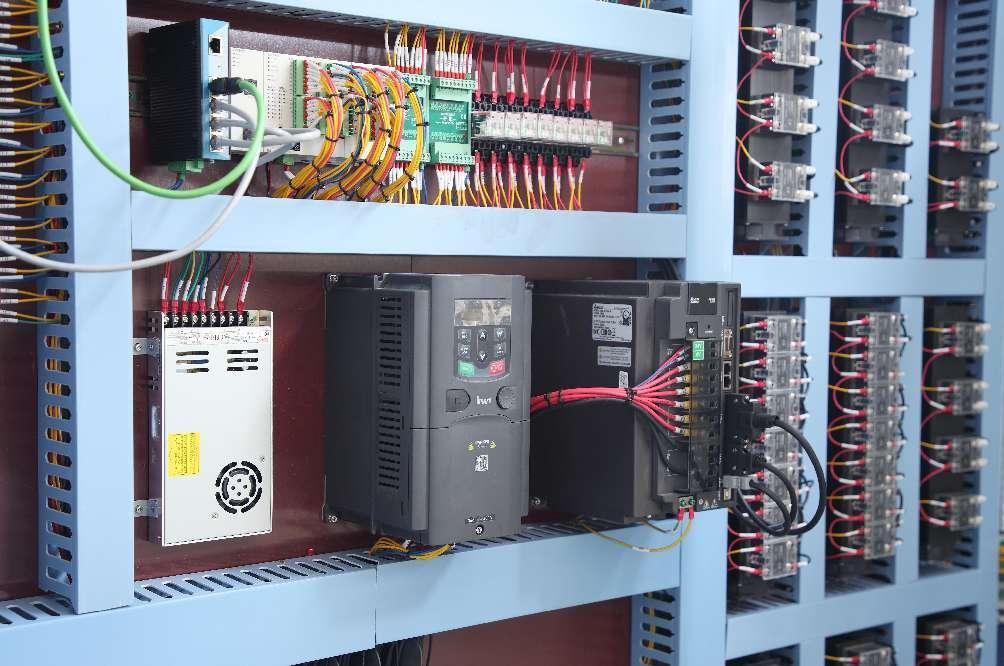

8. Thermoforming control system |
1 unit |
