Products
It is used for detecting velocity and extent of pharmic dissolution from tablet,capsule etc in prescriptive menstruum.

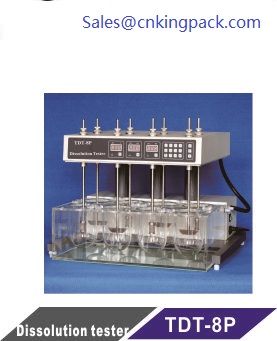

Dissolution tester
It is used for detecting velocity and extent of pharmic dissolution from tablet,capsule etc in prescriptive menstruum.
Applicable standards
1.National Standard(Chinese codex)/2005/
2.Corporate standard(Dissolution tester)Q/12xq0187-2004
Features:
1.It has eight vessel and eight poles with four Vessels and four poles in front and others at back.
2.The head moves up/down automatically.
3.The basket until and paddle unit are made of stainless steel (SUS316L)
4.The magnetism--pumped circular water current can heat the system evenly,and the bath liquid can achieve an equal temperature.
5.A MPU is used in dissolution tester to automaticlly control the temperature,rotational speed and time,and the parameters can be preset at any time.
6.It can be operated conveniently by keystroke .The measurement result is displayed by LED.The preset and real data can be displayed alternately in time.
7.Automation:auto-test ,auto-diagnose,auto-alarm.
8.It can test by self and alarm automatically.The dissolution parameters of "Chinese codex 2005' are stored in and can be taken out at anytime.
9.Time can be preset at many points.The beeper sounds automatically to any point ,and then the tester automatically runs to the next one.
Specifications:
1. Speed Range:(20-200)ram
2. Speed Accuracy:±2ram
3. Temperature range:ambient to +45.0°C
4. Temperature Stability:±0.3°C]
5. Preset timing: nine points(1-999)min
6. Time accuracy :±0.5mm
7. Paddle radial run-out:±0.5mm
8. Basket radial run-out:±1.0mm
9. Power: 220V/50HZ/600W or 110V/60HZ/600W
10. Dimension:680*540*480mm(L*W*H)
11. Weight:75kg
