Products

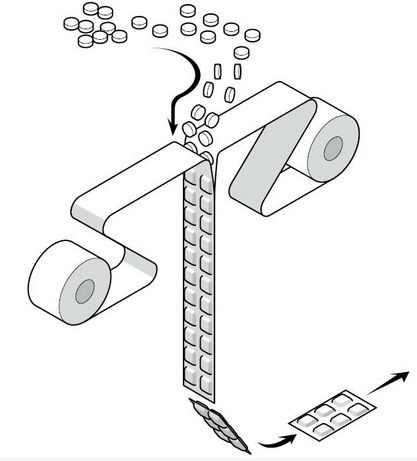

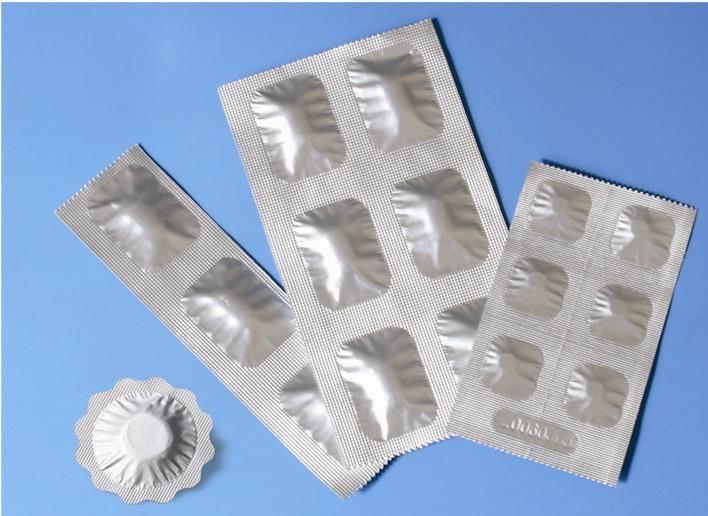

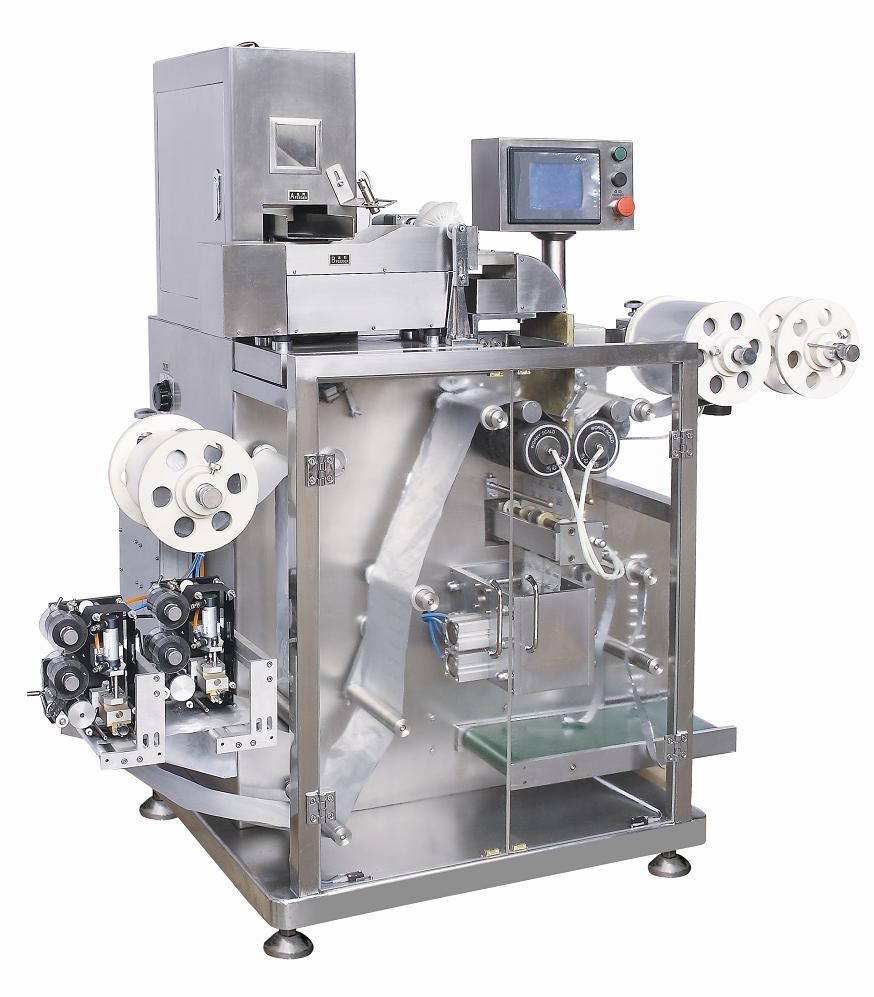

DLL-160 is a high speed strip packing Machine and is used for pack capsules, Tablets or similar products in to double soft Aluminium foil .
Applicants:
DLL-160 is a high speed strip packing Machine and is used for pack capsules, Tablets or similar products in to double soft Aluminium foil .
FEATURES:
1.Automatic feeding, sealing, slitting and cutting are done simultaneously. Therefore, its efficiency is high, meaning production cost is decreased due to reduction of labor cost.
2.The exterior of the machine is made og stainless steel which makes it easy to be cleaned and meet G.M.P.
3.Compact and constructed simply, the machine can and its be maintained easily, operates with low noise downtime is low.
4.When packing operation is completed, the product shall be absolutely sealed and beautifully looked at. This certainly promote the quality of the product.
5.It is easy to operate and anyone can learn the operation instantly.
6.The mold/die can be easliy replaced within 40 minutes.
Main Technical data:
|
Production Capacity: |
3-3.6 ten thousands per hour |
|
Blanking Frequency : |
20-50times/min |
|
Compressor Air: |
0.5MPa≥0.1m3/min(self-prepared) |
|
Main Motor Power: |
0.55KW |
|
Dimensions: |
1200*850*1700mm |
|
Weight: |
500kg |
