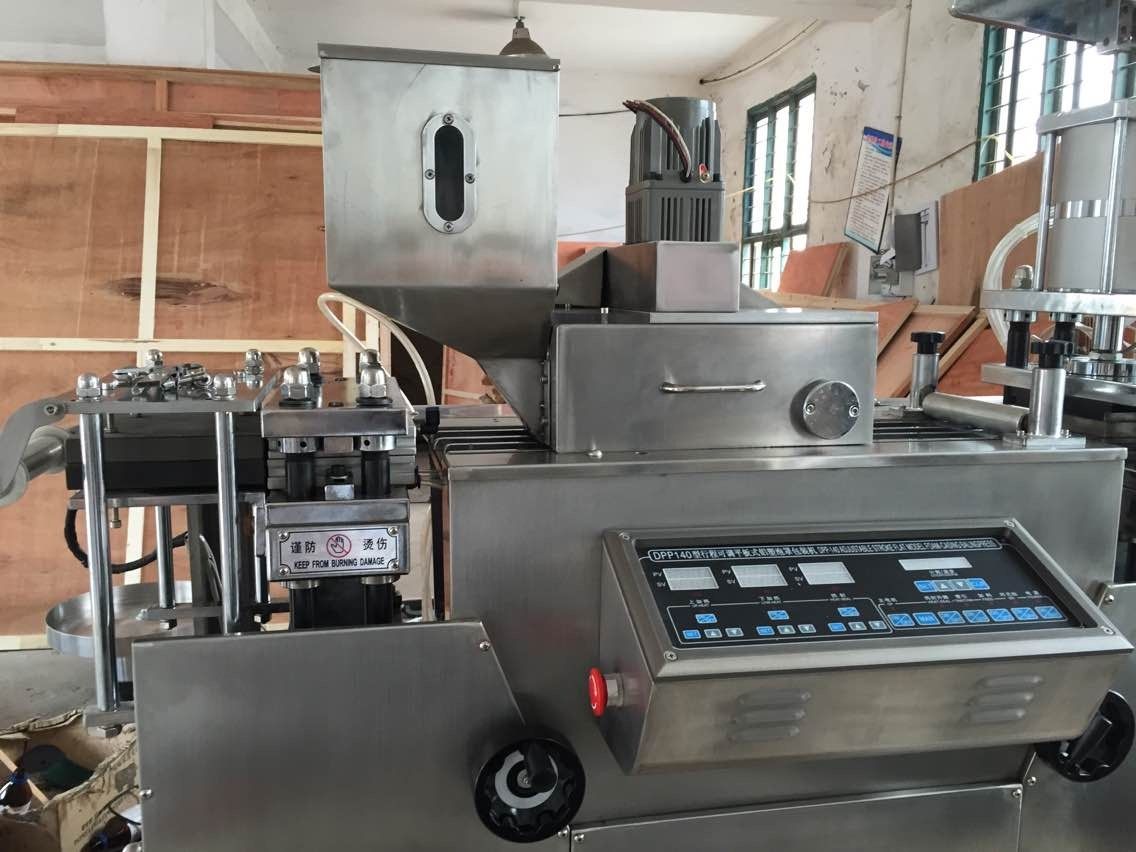

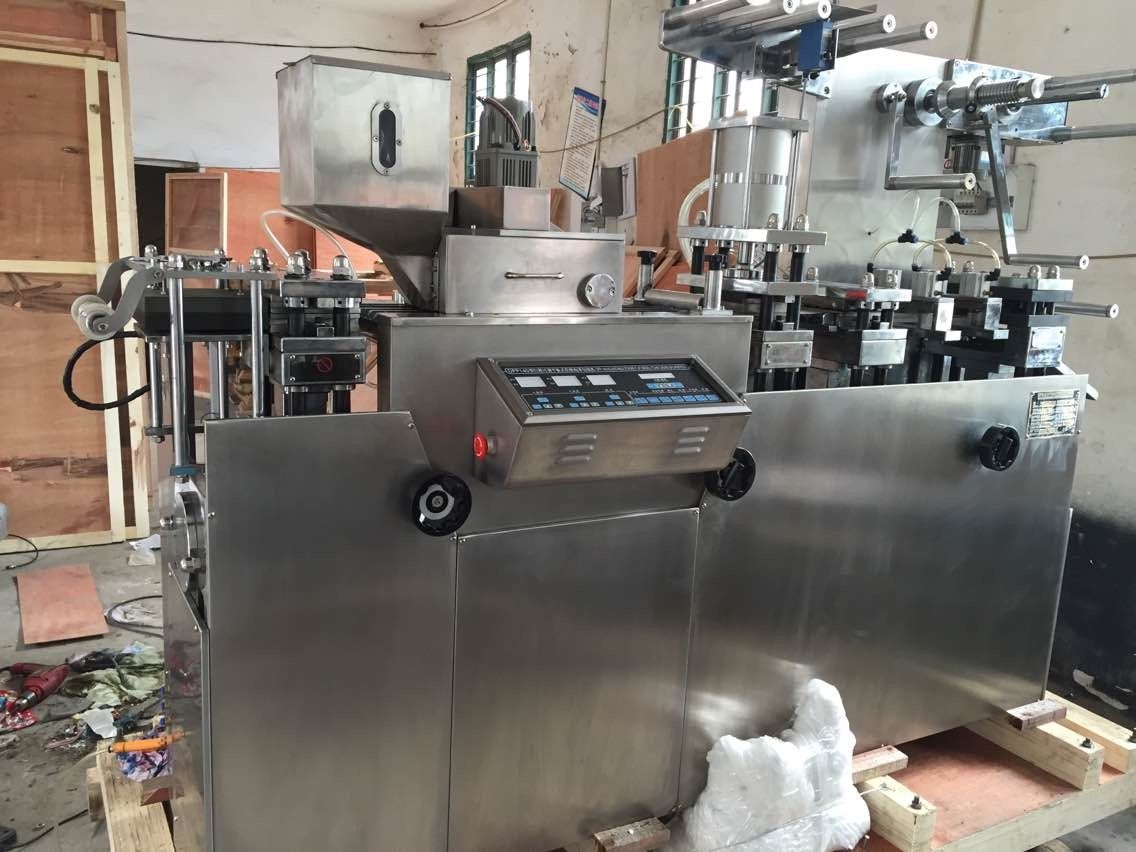

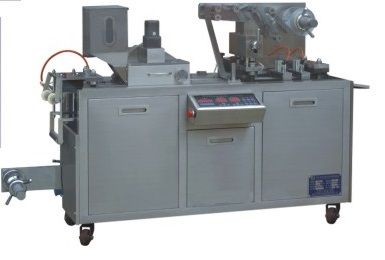

DPP-140 Blister Packing Machine stuitable for packing tablet ,capsule for small production ,machine can make for Alu-Alu,and Alu-PVC.
1. Description
DPP-140 Alu-PVC blister packing machine adopts touch system, variable frequency, advanced function, easy operation, high quality, so it is the best equipment for the industries such as big and mini pharmacy, and food.
Performance and Characteristics:
1.Variable Frequency Speed Regulating, PC Circuit Control Panel.
2.Adjustable Travel adopts manipulator grip equipped with inching device, which had accurate synchronization.
3.Travel-type feeder is suitable for feeding capsules and tablets.
4.Mould spout location is convenient for replacing mould.
2. Main technical parameters:
|
Blister Packing Machine |
DPP-140 |
|
Punch frequency- |
20-40(times/min) |
|
Max Output- |
4800 blisters/hour (Standard blister: 80*57) |
|
Max formed area and depth |
110×150×20(mm) |
|
Standard Stroke range |
40-120(adjustable) |
|
Standard blister |
80×57 (adjustable) |
|
Air pressure |
0.4-0.6 Mpa |
|
Total power |
380v/220v 50Hz 5.7Kw |
|
PVC Quality |
0.15-0.5mm |
|
PTP aluminum foil Quality |
0.02-0.035mm |
|
Mould cooling |
tap water or recycle water |
|
Overall dimension (L×W×H) |
2800×750×1750mm |
|
N.Weight |
800kg |
