DPP-80 Blister Packing Machine Best option for small batches,pharmaceutical R&D and pilot plants up to 40blisters/min.

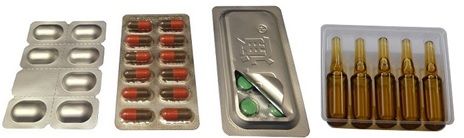

Blister Packaging for Pharmaceutical industry:

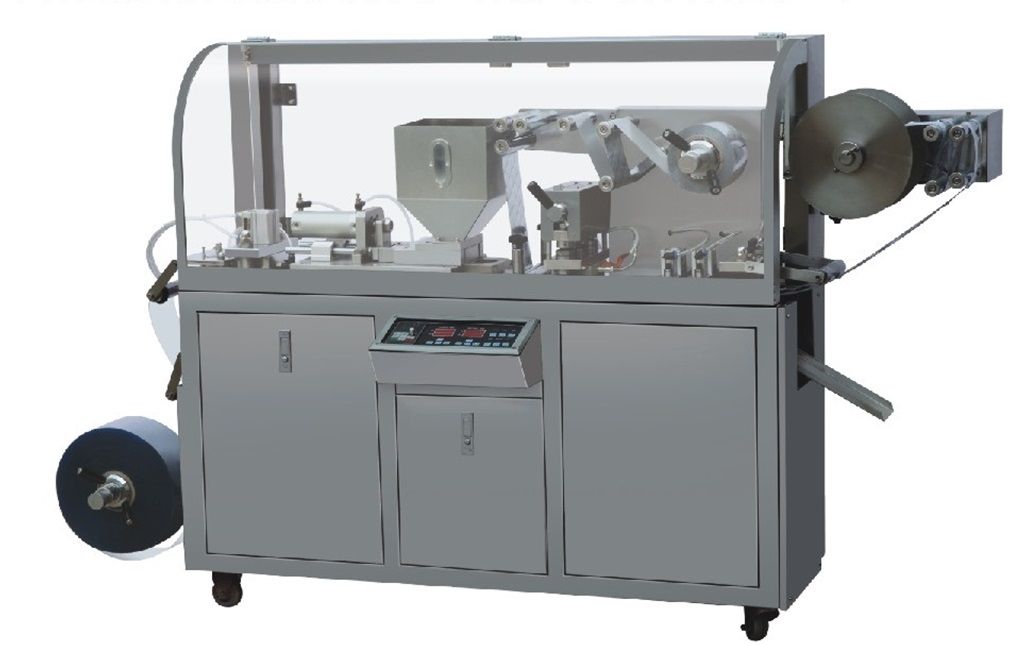

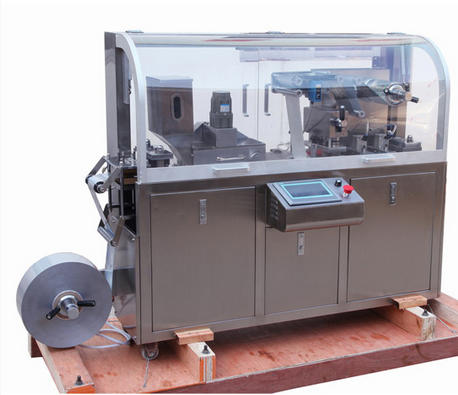

DPP-80 Blister Packing Machine Automatic Blister Machine
Best option for small batches, pharmaceutical R&D and pilot plants.
It allows forming thermoplastic (Alu-PVC) and cold forming materials (Alu-Alu).
It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.

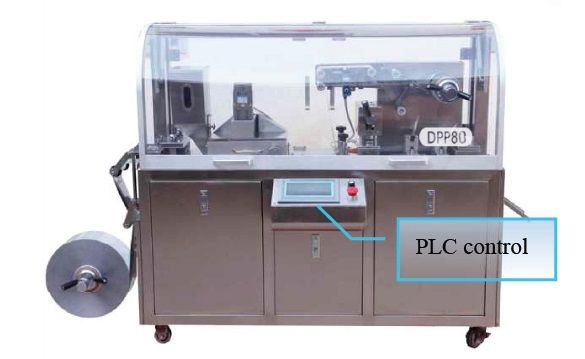

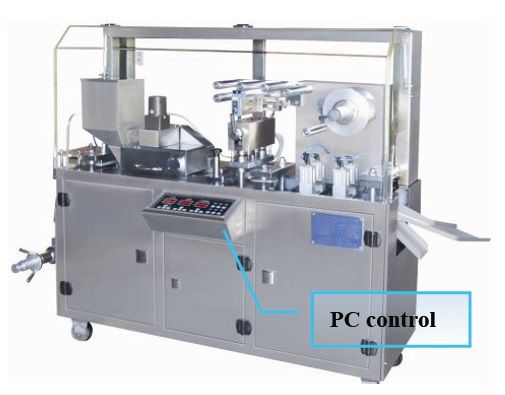

Automation by PLC or PC and operation through touch screen control panel.
It has pneumatic drives, which lend it high robustness and low maintenance.
It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.
DPP-80 is flexible and allows the adding of a great variety of accessories and optional extras:
· Aided forming
· Pre-cutting
· Inspection and rejecting control systems.
· Print mark registration
· Automatic feeder

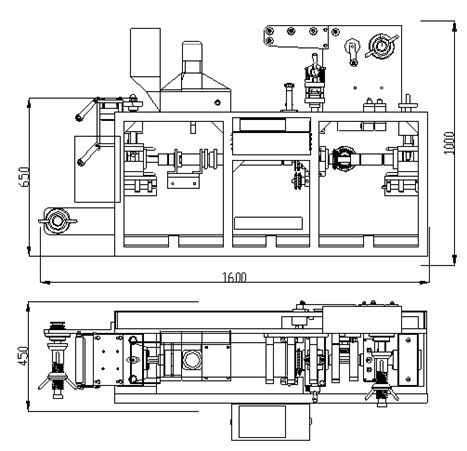

Machine Layout drawing:
Machine Tech Data:
|
Blister Packaging Machine |
DPP-80 |
|
Output |
Max.40 Blisters/min |
|
Capacity |
Alu/PVC,20-40cycles/minAlu/Alu,15-20cycles/min |
|
Die-cutting range max. |
70*105mm |
|
Forming depth max. |
10mm(Optional:up to 25) |
|
Indexing max. |
75mm |
|
Forming foil |
Thermoplastic, PVC, PVC-PVdC, PVC-Aclar, PET, etc.Cold forming (Alu-Alu). |
|
Max.wide |
115mm |
|
Max.diameter |
300mm |
|
Max.thickness |
300 microns(Optional: up to 600) |
|
Lidding foil |
Alu, paper, etc. |
|
Max.wide |
115mm. |
|
Max.diameter |
200mm. |
|
Power supply |
380V/220V 50/60Hz |
|
Power consumption |
2Kw |
|
Water consumption |
50 Its/hour @ 15/18℃ |
|
Air consumption |
300 Its/min. @ 6Kg |
|
Dimensions |
L=1600mm A=450mm H=1000mm |
|
|
450Kg |
