Capsule filling Machine,Capsule Fillers are designed for filling the hard gelatin capsules with powder or pellets.
The NJP-200 automatic capsule filling machine processes the products for optimal productivity up to12,000 capsules per hour, featuring low-maintenance operation, minimal downtime, and overall dependable production. Powder dosing uses the 5 stage tamping technology for an enhanced accuracy. Filling of pellets is available.
NJP-200 Automatic Capsule Filling Machine
The NJP-200 automatic capsule filling processes the products for optimal productivity up to12,000 capsules per hour, featuring low-maintenance operation, minimal downtime, and overall dependable production. Powder dosing uses the 5 stage tamping technology for an enhanced accuracy. Filling of pellets is available.
Suitable for 000# 00# 0# 1# 2# 3# 4# 5# capsules with relative moulds.
- With powder and pellet filling facilities.
- All contact parts made from SUS316L
- PLC control, HMI operation.
- Capacity preset
- Production volume display.
- Rejected volume display.
- Error alarm for electric control system.
- Alarm for continuous capsules rejection.
- Windows safety alarm.
Principle of Operation
Capsules from the bunker are feed into the orienting device along the vertical guide.
Then they are transferred into special cells on the rotor. Here the capsule is separated, after what the bottom part comes to the filling position.
After filling the bottom part with the material, on next positions the non-separated capsules are rejected, and the filled bottom parts are joined with top parts, counted and taken away into the receiving box.
Features

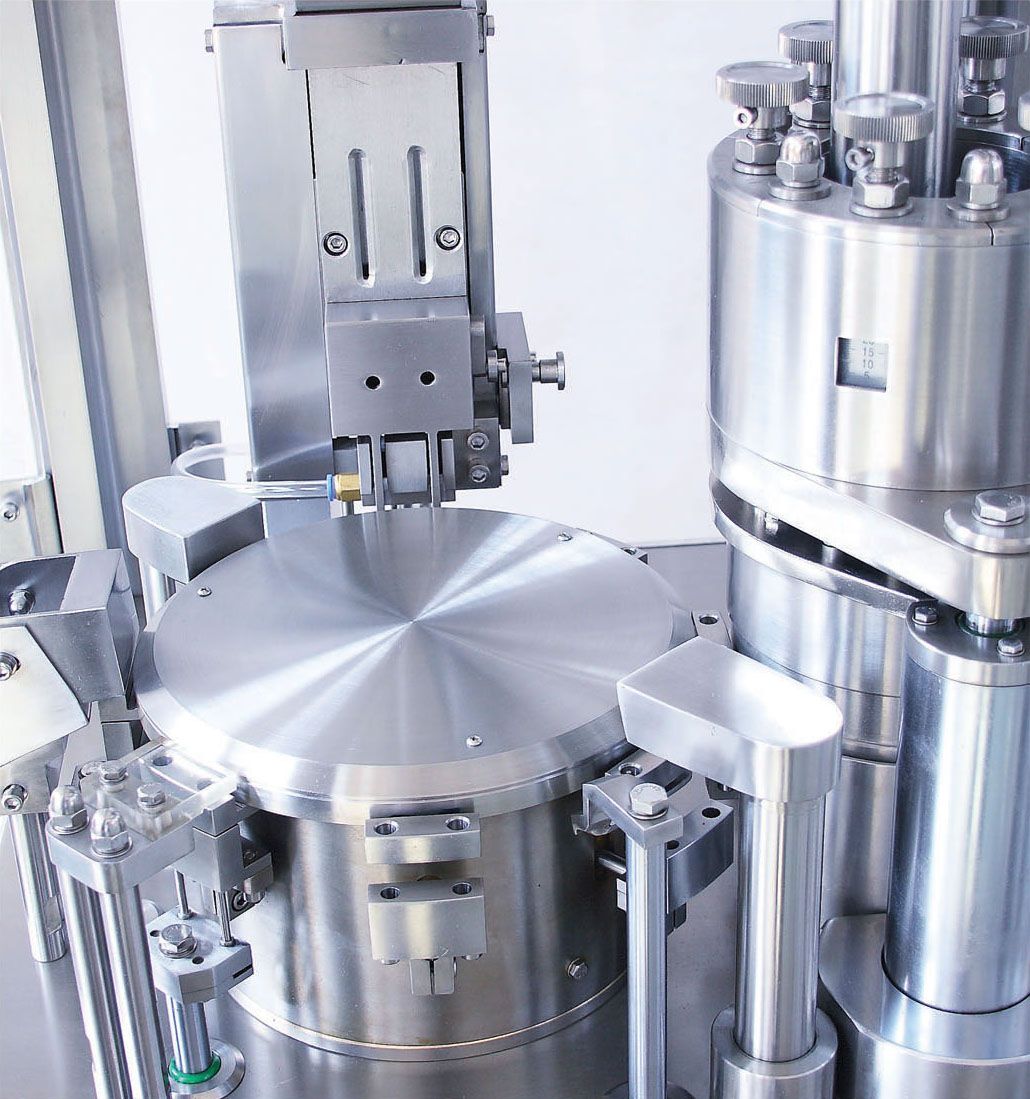

- cGMP design with emphasis in powder dust handling: Enclosed main turn table avoid dust getting into mechanical parts.
- Enclosed dosing system with dust suction reduces cleaning frequency.
- Vacuum cleaning station for segment cleanup in each cycle.
- Efficient capsule separation by means of vacuum.
- Automatic control for capsule and powder supply.
- PLC control (SIEMENS) for reliable operation.
- Touch Screen HMI, featuring user friendly controls: production counter, manual / automatic / parameter setup modes, alarms.
- Precision capsule segments and dosing disk minimizes adjustments following parts changeover.
- SS 304 stainless steel frames and transparent safety interlock guards.

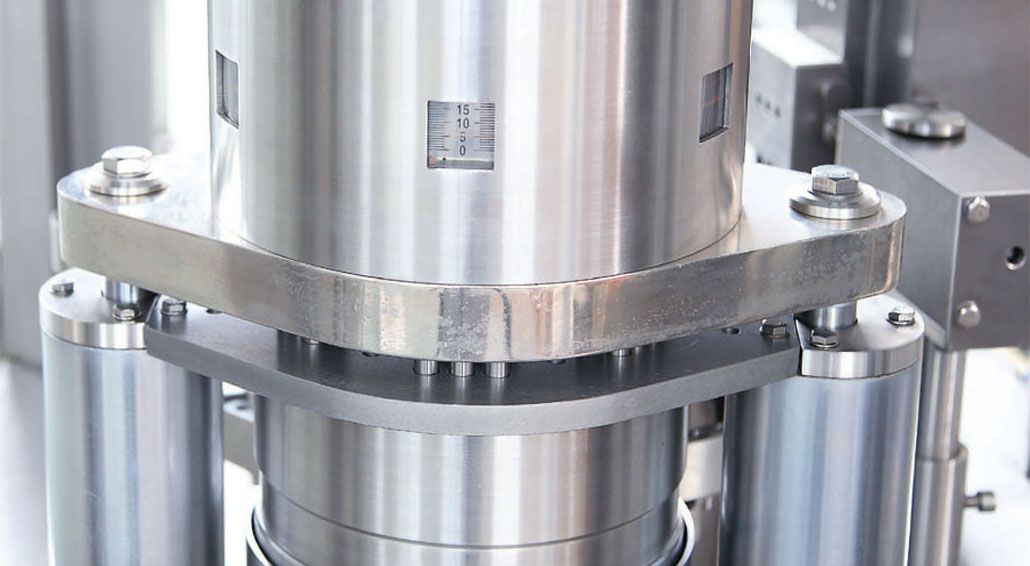

- Special 3D design in dosing disc bottom ring, 5-column support prevents material fatigue and deformation, ensures a constant gap of the dosing disc.
NJP-200 Capsule Filling Machine
| Capsule Filling Machine | NJP-200 Capsule Filler |
| Number of stations | 8 |
| Number of segment bores | 2 |
| Application range | Capsule sizes: #0, #1, #2, #3, #4 (option #00, #5) Each size requires a set of capsule tooling. |
| Max. output (pellet filling) | 3,000-8,500 pcs/ h (actual speed depends on formulation characteristics, filled weight, capsule size .. etc) |
| Max. Output | 6,000-12,000 pcs / h (powder filling) |
| Power source | 380/220V , 3 phase 4 wire , 60/50 HZ |
| Power consumption | 3 KW |
| Machine dimensions | 610(L) x680(W) x 1800(H) mm |
| Machine Weight | 700 Kg ( approx ) |
